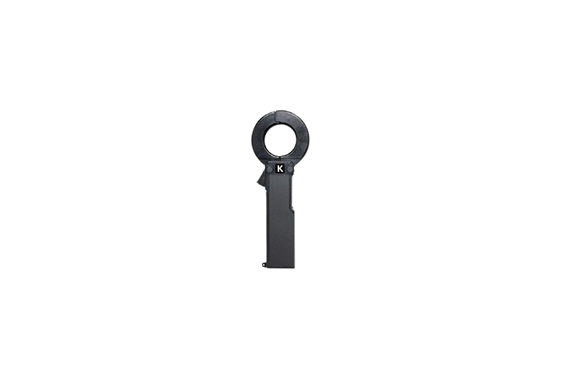

Multi ZCT-30 clamp-on AC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-30
Features
for general purpose leakage current measurementCT feederfor bulk measurement
Specifications
| Applicable current | AC 1mA～150A |
|---|---|
| Maximum allowable current | AC 120A |
| Nominal Current Ratio | 2000:1 |
| Example output | AC 9.9ｍV±2％（2A/10Ω） |
| Application frequency | 10Hz～500Hz |
| Wire diameter that can be installed | Max φ30mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 20cm single shield wire (φ3mm) |
| Dimensions and weight | W58×H158×D20mm Approx. 100g |
