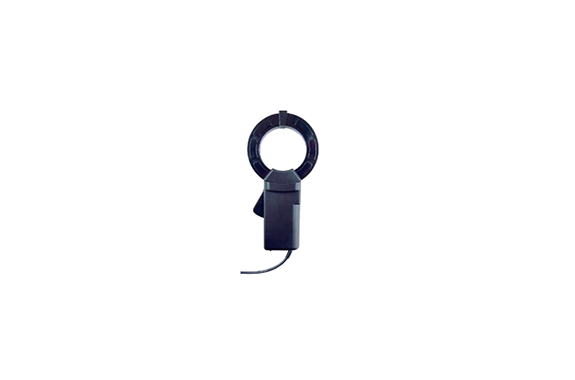

Multi ZCT-80H Clamp-on AC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ZCT-80H
Features
Low residue and low external magnetic field CT window diameter φ80mm
Specifications
| Applicable current | AC 0.01mA～10A |
|---|---|
| Maximum allowable current | AC 30A |
| Nominal Current Ratio | 2000:1 |
| Example output | AC 19.4mV±2%（0.2A/200Ω） |
| Application frequency | 10Hz～500Hz |
| Wire diameter that can be installed | Maximum φ74mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | 0~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 1m 2-core shielded wire (φ5.5mm) |
| Dimensions and weight | W123.2×H240.3×D53mm approx. 600g |
