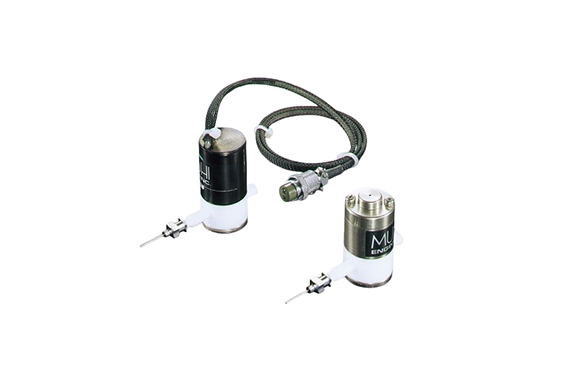

Musashi DCV-2/-3 Diaphragm valve
Manufacturer: Musashi Engineering, Inc.
Model: DCV-2/-3
Features
・A diaphragm valve ideal for dispensing minute amounts of low-viscosity liquids.
・All liquid-contacting parts are made of fluororesin, making it possible to dispense minute amounts of highly corrosive liquids.
・Types with a stroke adjustment mechanism (vernier dial type) are also available. (DCV-2N, DCV-3N)
Specifications
| name | Diaphragm valve DCV-2/-3 | |||
| Model | DCV-2-VT | DCV-2N-VT | DCV-3 | DCV-3N |
| Operation method | electromagnetic | With electromagnetic stroke adjustment | Air pressure type | With air pressure stroke adjustment |
| Applicable Viscosity | ~1 Pa・s | |||
| Operating air supply pressure range | – | 0.3 to 0.6 MPa | ||
| Maximum liquid material shared pressure | 0.2 MPa | 0.5 MPa | ||
| Liquid material supply port | M6 | |||
| Liquid material outlet | M6 |
