Nakayama Co.,Ltd.

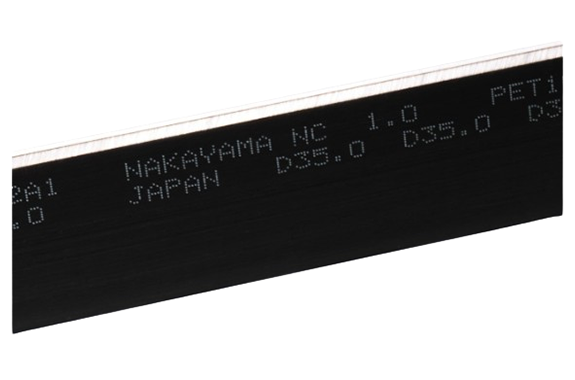

Nakayama Hi-MIR/ PET/ ANG36/ NCA/ NCD/ NCF Series High Rules
Manufacturer: Nakayama Co.,Ltd.
Model: Hi-MIR/ PET/ ANG36/ NCA/ NCD/ NCF Series
SPECIALITY CUTTING RULES
Cutting rules from 30mm to 80mm height.
It is suitable for punching materials such as molded products, food trays, and sponges.
We have a line up of products to meet your needs.
※Shown above are standard bevel shape of 1.0mm thickness.
Hi-MIR SERIES (DOUBLE LONG BEVEL)

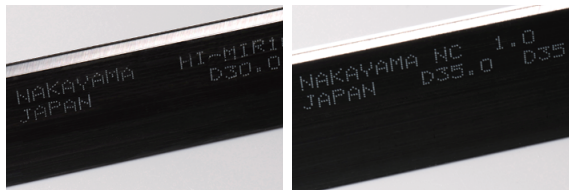

This is a series of cutting rules with mirror-finished edges for the ultimate in sharpness and the eneveness of height is minimized to the utmost limit.
Reducing die cutting press results in a beautiful cross section.
| ITEM | THICKNESS(mm) | HEIGHT(mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | LENGTH(mm) | CODE | |
|---|---|---|---|---|---|---|---|---|
| BODY | EDGE | |||||||
| Hi-MIR0730 | 0.7 | 30.0 | 50 | 80 | Blue | 43° | 1500 | 350241 |
| Hi-MIR1030 | 1.0 | 30.0 | 55 | 80 | Blue | 43° | 2000 | 352481 |
| Hi-MIR1032 | 1.0 | 32.0 | 55 | 80 | Blue | 43° | 2000 | 352581 |
| Hi-MIR1035 | 1.0 | 35.0 | 55 | 80 | Blue | 43° | 2000 | 352681 |
| Hi-MIR1040 | 1.0 | 40.0 | 55 | 80 | Blue | 43° | 2000 | 352881 |
| Hi-MIR1045 | 1.0 | 45.0 | 55 | 80 | Blue | 43° | 2000 | 353081 |
| Hi-MIR1050 | 1.0 | 50.0 | 55 | 80 | Blue | 43° | 2000 | 353191 |
| Hi-MIR1055 | 1.0 | 55.0 | 50 | 80 | Blue | 43° | 2000 | 353291 |
| Hi-MIR1060 | 1.0 | 60.0 | 50 | 80 | Blue | 43° | 2000 | 353391 |
PET SERIES(DOUBLE LONG BEVEL)
PET series is ideal for die cutting of plastic sheets such as PET, PP etc.
The shape of the cutting edge is the same as Hi-MIR series, double long bevel.
| ITEM | THICKNESS(mm) | HEIGHT(mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | LENGTH(mm) | CODE | |
|---|---|---|---|---|---|---|---|---|
| BODY | EDGE | |||||||
| PET1030 | 1.0 | 30.0 | 55 | 80 | Blue | 43° | 2000 | 352464 |
| PET1032 | 1.0 | 32.0 | 55 | 80 | Blue | 43° | 2000 | 352563 |
| PET1035 | 1.0 | 35.0 | 55 | 80 | Blue | 43° | 2000 | 352663 |
| PET1040 | 1.0 | 40.0 | 55 | 80 | Blue | 43° | 2000 | 352873 |
| PET1045 | 1.0 | 45,0 | 55 | 80 | Blue | 43° | 2000 | 353063 |
| PET1050 | 1.0 | 50.0 | 55 | 80 | Blue | 43° | 2000 | 353172 |
| PET1055 | 1.0 | 55.0 | 50 | 80 | Blue | 43° | 2000 | 353263 |
| PET1060 | 1.0 | 60.0 | 50 | 80 | Blue | 43° | 2000 | 353372 |
| PET1065 | 1.0 | 65.0 | 50 | 80 | Blue | 43° | 2000 | 353462 |
| PET1070 | 1.0 | 70.0 | 50 | 80 | Blue | 43° | 2000 | 353563 |
| PET1080 | 1.0 | 80.0 | 50 | 80 | Blue | 43° | 2000 | 353763 |

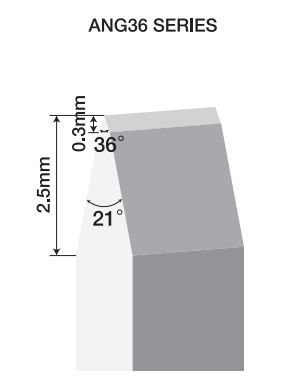

ANG36 SERIES(DOUBLE LONG BEVEL)
This is a series of cutting rules with a more acute angle (36 degree) than usual. Sharp cutting is possible due to better penetration of the cutting edge.
| ITEM | THICKNESS(mm) | HEIGHT(mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | LENGTH(mm) | CODE | |
|---|---|---|---|---|---|---|---|---|
| BODY | EDGE | |||||||
| ANG36-1030 | 1.0 | 30.0 | 50 | 83 | Blue | 36° | 2000 | 352460 |
| ANG36-1035 | 1.0 | 35.0 | 50 | 83 | Blue | 36° | 2000 | 352668 |
| ANG36-1040 | 1.0 | 40.0 | 50 | 83 | Blue | 36° | 2000 | 352866 |
| ANG36-1050 | 1.0 | 50.0 | 50 | 83 | Blue | 36° | 2000 | 353165 |
| ANG36-1055 | 1.0 | 55.0 | 50 | 83 | Blue | 36° | 2000 | 353271 |

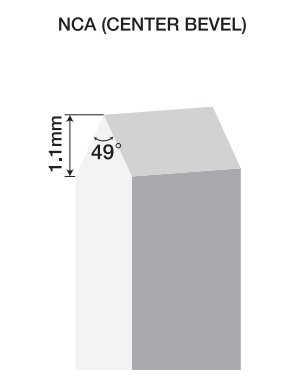

NCA (CENTER BEVEL)
| ITEM | THICKNESS(mm) | HEIGHT(mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | LENGTH(mm) | CODE | |
|---|---|---|---|---|---|---|---|---|
| BODY | EDGE | |||||||
| NCA0730 | 0.7 | 30.0 | 50 | 72 | Blue | 43° | 1500 | 350251 |
| NCA1030 | 1.0 | 30.0 | 50 | 72 | Blue | 49° | 1500 | 352451 |
| NCA1032 | 1.0 | 32.0 | 50 | 72 | Blue | 49° | 1500 | 352551 |
| NCA1035 | 1.0 | 35.0 | 50 | 72 | Blue | 49° | 1500 | 352651 |
| NCA1040 | 1.0 | 40.0 | 50 | 72 | Blue | 49° | 1500 | 352851 |
| NCA1045 | 1.0 | 45.0 | 50 | 72 | Blue | 49° | 1500 | 353051 |
| NCA1050 | 1.0 | 50.0 | 50 | 72 | Blue | 49° | 1500 | 353151 |
| NCA1060 | 1.0 | 60.0 | 50 | 72 | Blue | 49° | 1500 | 353351 |

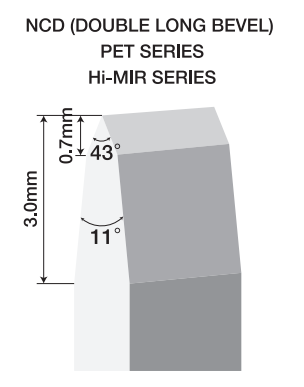

NCD (DOUBLE LONG BEVEL)
| ITEM | THICKNESS(mm) | HEIGHT(mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | LENGTH(mm) | CODE | |
|---|---|---|---|---|---|---|---|---|
| BODY | EDGE | |||||||
| NCD0730 | 0.7 | 30.0 | 50 | 72 | Blue | 50° | 1500 | 350261 |
| NCD1030 | 1.0 | 30.0 | 50 | 72 | Blue | 43° | 1500 | 352461 |
| NCD1032 | 1.0 | 32.0 | 50 | 72 | Blue | 43° | 1500 | 352561 |
| NCD1035 | 1.0 | 35.0 | 50 | 72 | Blue | 43° | 1500 | 352661 |
| NCD1040 | 1.0 | 40.0 | 50 | 72 | Blue | 43° | 1500 | 352861 |
| NCD1045 | 1.0 | 45.0 | 50 | 72 | Blue | 43° | 1500 | 353061 |
| NCD1050 | 1.0 | 50.0 | 50 | 72 | Blue | 43° | 1500 | 353161 |
| NCD1055 | 1.0 | 55.0 | 50 | 72 | Blue | 43° | 1500 | 353261 |
| NCD1060 | 1.0 | 60.0 | 50 | 72 | Blue | 43° | 1500 | 353361 |

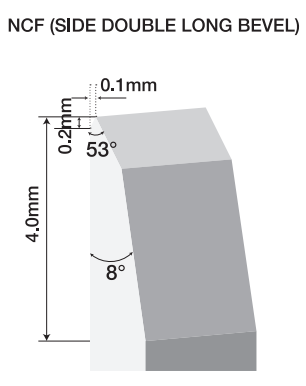

NCF (SIDE DOUBLE LONG BEVEL)
| ITEM | THICKNE8S(mm) | HEIGHT(mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | LENGTH(mm) | CODE | |
|---|---|---|---|---|---|---|---|---|
| BODY | EDGE | |||||||
| NCF1030 | 1.0 | 30.0 | 50 | 72 | Blue | 53° | 1500 | 352471 |
| NCF1040 | 1.0 | 40.0 | 50 | 72 | Blue | 53° | 1500 | 352871 |
