Nakayama Make-Ready
Manufacturer: Nakayama Co.,Ltd.

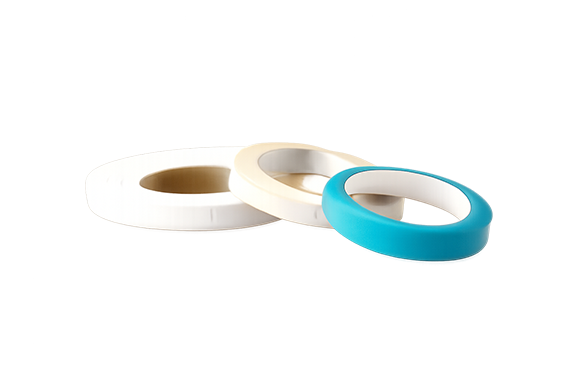

SPOT TAPE
Make-ready tape made of paper.
| ITEM | REMARKS | MOQ | CODE | |
|---|---|---|---|---|
| SPOT TAPE (Paper) | thickness: 0.04mm | size:0.04mmTx6mmWx20m | 20 (pcs) | 610072 |
| thickness: 0.06mm | size:0.06mmTx6mmWx20m | 20 (pcs) | 610075 | |
| thickness: 0.09mm | size:0.09mmTx6mmWx6m | 100（pcs） | 610063 | |
| thickness: 0.14mm | size:0.14mmTx6mmWx5m | 100（pcs） | 610065 | |
| thickness: 0.18mm | size:0.18mmTx6mmWx10m | 20 (pcs) | 610078 | |

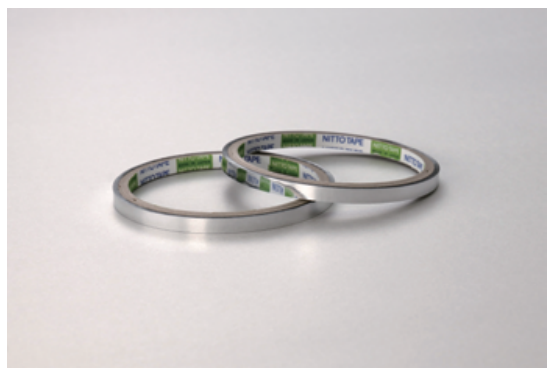

LEVEC TAPE
Aluminized polyester film is base material.
Applying along creasing matrix or counter plate, paper sheet flows smoothly.
| ITEM | REMARKS | MOQ | CODE | |
|---|---|---|---|---|
| LEVEC TAPE (Aluminized polyester film) | thickness: 0.06 mm | size:0.06mmTx6mmWx10m | 20 (pcs) | 610110 |

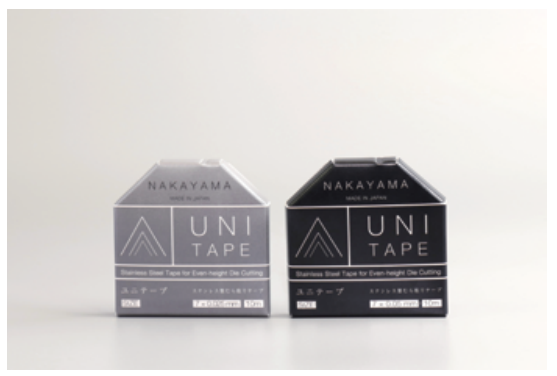

UNI TAPE
Stainless steel tape. It is durable and can be applied directly to the back side of the dieboard.
| ITEM | REMARKS | MOQ | CODE | |
|---|---|---|---|---|
| UNITAPE （Stain less） | thickness: 0.025mm | size:0.025mmTx7mmWx10m | 5 （pcs） | 610502 |
| thickness: 0.05mm | size:0.05mmTx7mmWx10m | 5 （pcs） | 610501 | |
| thickness: 0.1mm | size:0.1mmTx12mmWx10m | 5 （pcs） | 610503 | |

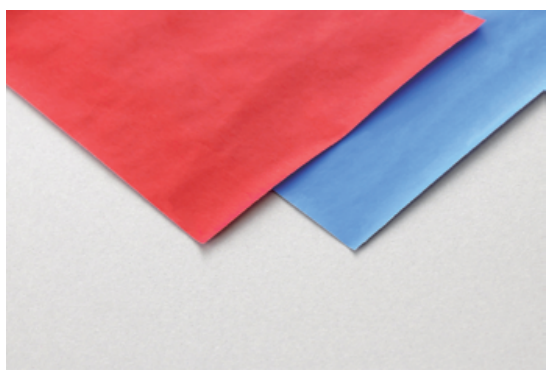

CARBON PAPER
For marking cutting and creasing rules on make-ready sheets.
We have two colors, red and blue.
| ITEM | REMARKS | MOQ | CODE |
|---|---|---|---|
| RED CARBON PAPER | Size : 788mm x 545mm | 500 (pcs) | 630101 |
| BLUE CARBON PAPER | Size : 788mm x 1090mm | 100 (pcs) | 630102 |

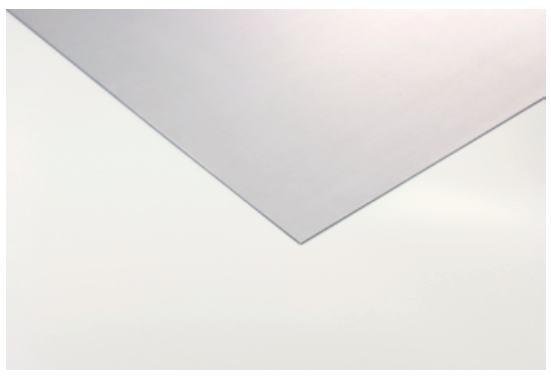

STAINLESS CUTTING PLATE
We can provide thickness and size that are suited for various manufacturers’ flatbed die-cutting machines.
Hole drilling and other processing are also available.
It can be used repeatedly and it leads to reducing the next setting time.
| ITEM | REMARKS | |
|---|---|---|
| Stainless cutting plate | Material: DP-2 | Hardness 52° |
| Material: SUS304 | Hardness 24° | |
PRESS BALANCE SYSTEM
This sheet is used to improve the parallelism of the pressing balance of the flatbed die-cutting machine. There are some effects such as reduction of make-ready time, paper dust, and improvement of dieboard life cycle. You can find more information on our website.
