Manufacturer: Nakayama Co.,Ltd.
Model: SL/ ST/ PL Series

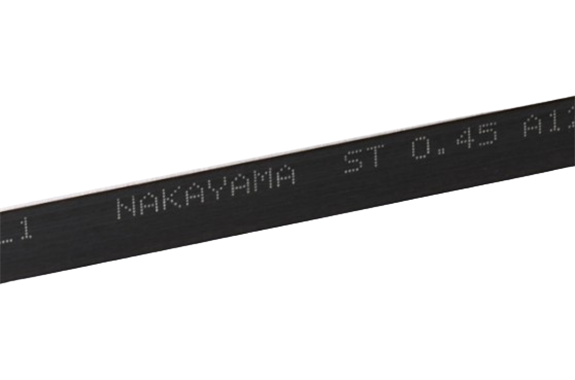

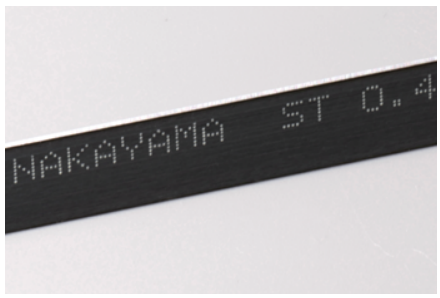

LABEL RULES
It is mainly used for cutting adhesive sheets such as stickers, labels and decals. Even if the product shape is complicated, label rules are bendable.
LABEL RULES(MIR)
| COIL WINDING | ITEM | THICKNESS (mm) | HEIGHT (mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | CODE |
|---|
| BODY | EDGE |
|---|
| A470 | ST-MIR080 | 0.45 | 8.0 | 50 | 80 | Silver | 44° | 303061 |
| ITEM | THICKNESS(mm) | HEIGHT(mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | LENGTH(mm) | CODE |
|---|
| BODY | EDGE |
|---|
| ST-MIR080 | 0.45 | 8.0 | 40 | 80 | Silver | 49° | 909 | 303048 |
| ST-MIR120 | 0.45 | 12.0 | 40 | 80 | Silver | 49° | 909 | 303145 |
LABEL RULES (CENTER BEVELS)
| COIL WINDING | ITEM | THICKNESS(mm) | HEIGHT (mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | CODE |
|---|
| BODY | EDGE |
|---|
| A470 | SLA080 | 0.45 | 8.0 | 50 | 80 | Silver | 44° | 303060 |
| ITEM | THICKNESS(mm) | HEIGHT(mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | LENGTH(mm) | CODE |
|---|
| BODY | EDGE |
|---|
| SLA060 | 0.45 | 6.0 | 40 | 80 | Silver | 49° | 909 | 303104 |
| SLA070 | 0.45 | 7.0 | 40 | 70 | Blue | 49° | 909 | 303111 |
| 0.45 | 7.0 | 40 | 80 | Silver | 49° | 909 | 303114 |
| SLA080 | 0.45 | 8.0 | 40 | 70 | Blue | 49° | 909 | 303003 |
| 0.45 | 8.0 | 40 | 80 | Silver | 49° | 909 | 303004 |
| 0.45 | 8.0 | 45 | 80 | Brown | 49° | 909 | 303037 |
| SLA095 | 0.45 | 9.5 | 40 | 70 | Blue | 49° | 909 | 303121 |
| SLA105 | 0.45 | 10.5 | 40 | 70 | Blue | 49° | 909 | 303131 |
| 0.45 | 10.5 | 40 | 80 | Silver | 49° | 909 | 303134 |
| SLA120 | 0.45 | 12.0 | 40 | 70 | Blue | 49° | 909 | 303141 |
| 0.45 | 12.0 | 40 | 80 | Silver | 49° | 909 | 303144 |
LABEL RULES (SIDE BEVEL)
| ITEM | THICKNESS(mm) | HEIGHT(mm) | HARDNESS(HS) | COLOR | EDGE ANGLE | LENGTH(mm) | CODE |
|---|
| BODY | EDGE |
|---|
| SLC080 | 0.45 | 8.0 | 50 | 75 | Blue | 60° | 909 | 303085 |
PERFORATING LABEL RULES
| ITEM | Tooth Gap | THICKNESS (mm) | HEIGHT(mm) | HARDNESS(HS) BODY | COLOR | EDGE ANGLE | LENGTH(mm) | CODE |
|---|
| PLA080 | 1.0X1.0 | 0.45 | 8.0 | 70 | Brown | 49° | 909 | 303511 |
| 2.0X1.0 | 0.45 | 8.0 | 70 | Brown | 49° | 909 | 303512 |
| 3.0X1.0 | 0.45 | 8.0 | 70 | Brown | 49° | 909 | 303513 |
