SPRING PUNCHES

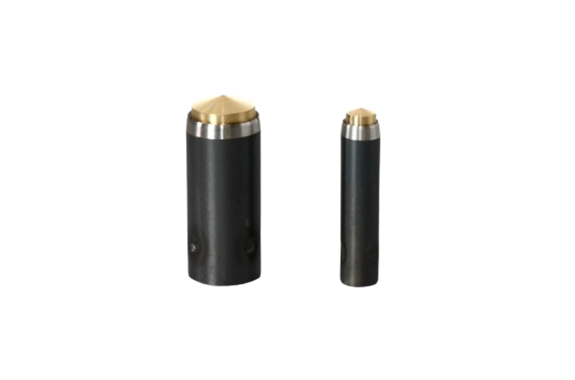

Punch with spring. Brass of spring top eject materials, so no ejection products are needed.
Mirror-finished products are available to 13mm. (except for fraction)
| HEIGHT (mm) | EDGE DIAMETER (ϕmm) | INTERVAL (mm) | BEVEL | REMARKS |
|---|---|---|---|---|
| 23.5 | 1.5〜2.0 | 0.5 | Outer Gradient (Outside) | Outer Diameter = Edge Diameter + 1.0mm |
| 2.5〜5.0 | 0.5 | Center Bevel | Outer Diameter = Edge Diameter + 0.7mm | |
| 6.0〜10.0 | 1.0 | Center Bevel | Outer Diameter = Edge Diameter + 0.7mm | |
| 23.6 | 1.5 〜2.0 | 0.5 | Outer Gradient (Outside) | Outer Diameter = Edge Diameter + 1.0mm |
| 2.5〜10.0 | 0.5 | Center Bevel | Outer Diameter = Edge Diameter + 0.7mm | |
| 11.0〜13.0 | 1.0 | Center Bevel | Outer Diameter = Edge Diameter + 0.7mm | |
| 1.6〜2.4 | 0.1 | Outer Gradient (Outside) | Outer Diameter = Edge Diameter + 1.0mm | |
| 2.6 〜9.9 | 0.1 | Center Bevel | Outer Diameter = Edge Diameter + 0.7mm |
