NK-1000 Threaded Type Flexible Hose (Standard Union Type)
Product Made in Japan
Model: NK-1000 (Female Both End)
NFK flexible hoses have outstanding flexibility of motion and resistance to heat, pressure and earthquakes. They support a wide range of gas and liquid transport lines for transporting substances such as air, steam, gases, water, oils and chemicals.
Feature
This product welds a union collar to a tube.
Applicable tube: STD
Nominal Dia: 8~65
Length: 200mm~10M
Use
Adjustment of piping, Lateral deflection.
*Do not torque the hose.
Materials
| ① Tube | Stainless Steel |
|---|---|
| ② Braid | Stainless Steel |
| ③ Union | Carbon steel, Stainless Steel, Copper Alloy |
| ④ Collar | Stainless Steel |
| ⑤ Gasket | Non Asbestos |
Drawing

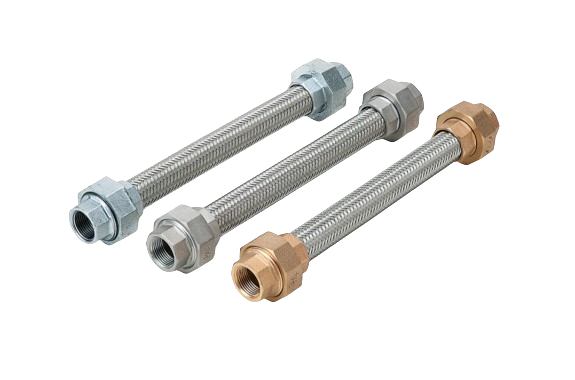

Product Variation
① Ferrum casting Malleable Black Fitting
Applicable fluid :Water, Oil, Air, Steam
Operating temperature:-10~100℃ (Available up to 200℃ by changing the gasket.)
Operating Pressure: 0.1~1.0MPa
② Stainless steel fitting
Applicable fluid: Water, Oil, Air, Steam, Chemical fluid
*Limited to fluid that not use corroded stainless steel.
Operating temperature:-40~200℃ (Available up to 200℃ by changing the gasket.)
Operating Pressure 0.1~1.0MPa
③ Copper alloy fittings
Applicable fluid: Water, Air, Oil
Operating temperature: 20~100℃
Operating Pressure 0.1~1.0MPa
Option
Spring Guard (GS):
This spring gives more allowable bending radius and reduces the external bending stress.
Model: NK-1000GS
Insulating Jackets/Glass cloth(GB)
This cover is made of glass fiber. It prevent heats from outside and inside.
Model: NK-1000GB
Insulating Jackets/Aero flexs®(AF)
This coating prevent dew condensation of hoses.
Model: NK-1000AF
Underground Processing(UG)
Carbon steel is coated by tar epoxy coating for corrosion-resistant, and braided hose is covered by the tapes not to enter foreign material between the carriers.
Model: NK-1000UG
