NIC Autotec

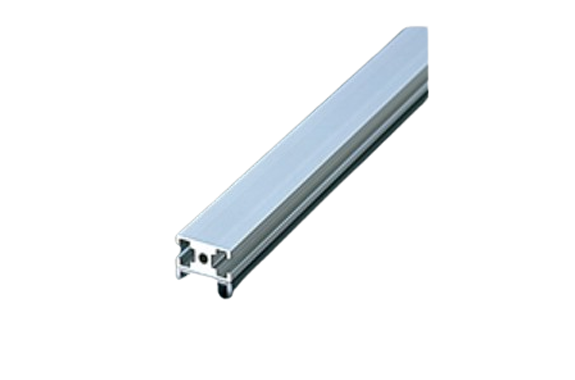

Nic AFS-1020-4 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-1020-4
Specifications
Stock dimensions | 6000mm |
| Sales dimensions | 15–4000mm |
| Cutting tolerance | ± 0.3mm (≤2m) |
| Material | A6063S–T5 |
| Surface treatment | Anodized finish (average thickness of 5 μm or more) with clear electrodeposition coating* |
| Tensile strength | 185 N/mm² |
| Cross-sectional area | 101.7 mm² |
| Mass | 0.275 kg/m |
| Second moment of area | Ix 0.13 × 10⁴ mm⁴ Iy 0.13 × 10⁴ mm⁴ |
| Compatible end caps | ECP-1020-4 |
