NIC Autotec

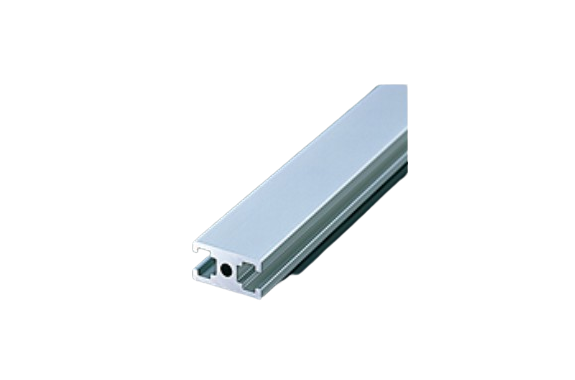

Nic AFS-1530-6 Basic Frame
Manufacturer: NIC Autotec, Inc.
Model: AFS-1530-6
Specifications
| Stock dimensions | 6000mm |
| Sales dimensions | 15–4000mm |
| Cutting tolerance | ± 0.3mm (≤2m) |
| Material | A6063S–T5 |
| Surface treatment | Anodized finish (average thickness of 5 μm or more) with clear electrodeposition coating* |
| Tensile strength | 185 N/mm² |
| Cross-sectional area | 253.2mm 2 |
| Mass | 0.684 kg/m |
| Second moment of area | Ix 0.72× 10⁴ mm 4 Iy 1.54×10 4 mm 4 |
| Compatible end caps | ECP-1530-6 |
