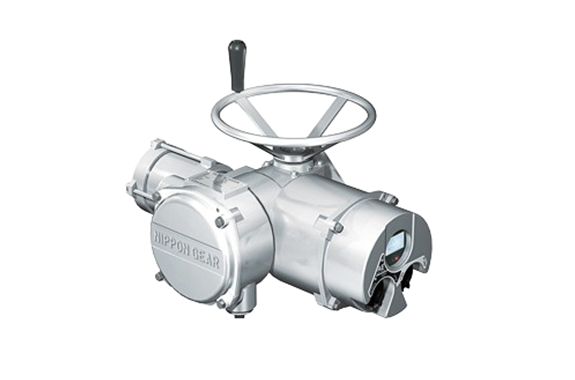

Nippon Gear AE Series
Manufacturer: Nippon Gear Co., Ltd.
Model: AE Series
Features
- Adjustments and function settings can be made from the control panel, with no need to open the cover.
- Incorporates a control device necessary for electrically operating the actuator, allowing you to operate the actuator from the actuator control panel merely by providing a power supply.
- Ensures the protection of the electric room with the terminal block in a double seal structure.
- The AE can be coupled with the plug-in-connector for power and control cables.
- Applicable with PROFIBUS-DP, TWC.
Specification
| Size | AE-05 | AE-1 | AE-3 | AE-5 | AE-10 | AE-20 | |
|---|---|---|---|---|---|---|---|
| Thrust rating（kN） | 44 | 44 | 88 | 130 | 200 | 320 | |
| Torque rating（N・m） | 60 | 140 | 270 | 540 | 1500 | 2700 | |
| Maximum stem capacity（mm）*1 | Key connection (Key way) | 24 （7×3） | 24 （7×3） | 46 （14×3.8） | 53 （16×4.3） | 30〜60 （18×4.4） | 35〜70 （20×4.9） |
| Thread connection | 32 | 32 | 57 | 66 | 38〜73 | 42〜86 | |
| Output speed（mm-1） | 60Hz | 24〜42 | 12〜200 | 12〜204 | 24〜204 | 7〜138 | 8〜137 |
| 50Hz | 19〜40 | 10〜166 | 10〜169 | 20〜169 | 7〜138 | 8〜137 | |
| Handwheel ratio | Standard | 1:1 | 1:1 | 1:1 | 1:1 | 10.76〜66.7 | 11.15〜57.43 |
| Option | 4.2:1 | 4.2:1 | 5.7:1 | 12:1 | – | – | |
| Mounting Flunge | ISO F10 | ISO F10 | ISO F14 | ISO F14 | ISO F25 | ISO F30 | |
| Weight（kg）*2 | 37 | 41 | 66 | 89 | 179 | 223 | |
| Use environment | Use environment | Weatherproof/Explosion proof JIS Exd II BT4*3 | |||||
| IP grade | IP68（10m/72h）*4 | ||||||
| Temperature | -20〜+60℃ | ||||||
| Humidity | 30〜95%PH（In more than 75%, avoid the opening of the terminal cover.） | ||||||
| Vibration Legistance | 0.5G（10〜200Hz） | ||||||
| Impact Legistance | 9G（25msec） | ||||||
| Motor | Type | Three-phase induction motor | |||||
| Standard Power Supply Motor | 50Hz AC200V、200V/400V（±10%） 60Hz AC200V/400V,440V（±10%） | ||||||
| Rating | 15 minute | ||||||
| Thermal class | F | ||||||
*1.AE-05~5 drive 1 is Key connection. AE-05~5 drive 2 is Thread connection.
*2.Standard type, drive 2 and the maximum motor.
*3.AE-1~5 only. (Optional)
*4.AE-10, 20 standard type is IP55. IP68 is optional.
