Japan, Nitta
Nitta Quick Seal Series Hose And Tube Products
Product Made in Japan
Manufacturer: Nitta
Model: Quick Seal Series: Insert type brass specifications, Insert type SUS304 specification, Insertless type

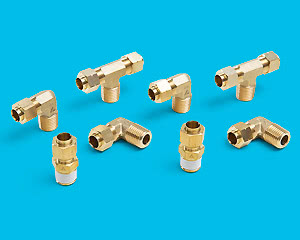

Insert type brass specifications
%E2%91%A0.jpg)
| Fluid used |  Air |
 Water |
 General hydraulic oil |
|---|---|---|---|
| Operating temperature limit (Nylon sleeve) |
-40℃~ +80℃ | 0℃~ +70℃ | -40℃~ +80℃ |
| Operating temperature limit (Brass sleeve) |
-40℃~ +100℃ | 0℃~ +100℃ | -40℃~ +100℃ |
| Maximum working pressure | 5.0MPa | ||
Screw-in type for multi-purpose piping
High sealing performance
Available for piping among high pressure range
JIS B 8381-1995 (fittings for pneumatic flexible pipes) compliant
Insert type SUS304 specification
| Fluid used | Air |
Water |
General hydraulic oil |
|---|---|---|---|
| Operating temperature limit (Nylon sleeve) |
-40℃~ +80℃ | 0℃~ +70℃ | -40℃~ +80℃ |
| Maximum working pressure | 5.0MPa | ||
Screw-in type for multi-purpose piping
High sealing performance
Available for piping among high pressure range
JIS B 8381-1995 (fittings for pneumatic flexible pipes) compliant

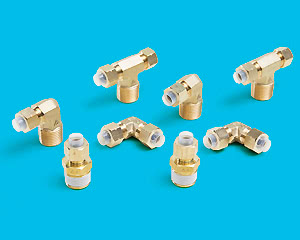

Insertless type
%E2%91%A0.jpg)
| Fluid used | Air |
|---|---|
| Operating temperature limit | -40℃～ +100℃ |
| Maximum working pressure | 1.0 MPa |
For general pneumatic piping.
Large effective sectional area due to lack of an insertion part.
