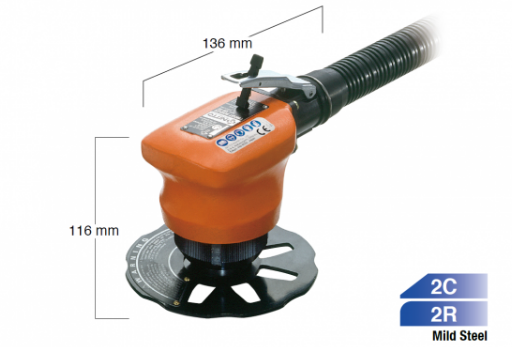

Nitto Kohki CIRCUIT BEVELER CB-02 Pneumatic Radial Chamfering Tool
Manufacturer: NITTO KOHKI
Model: CB-02
Uniquely designed to chamfer circular, elliptical and straight-line profiles of CB-02
Chamfers exterior and/or interior edges
Depth gauge provided to set chamfer widths accurately
Optional attachment PN TB02437 is available for chamfering thin materials
Specifications
CB-02 Model Specifications
| Specification | Unit | Value |
|---|---|---|
| Air Pressure | MPa (kgf/cm²) | 0.6 (6) |
| Air Consumption (No-load) | m³/min | 0.4 |
| Free Speed | min⁻¹ (rpm) | 15000 |
| Chamfering Capacity | – | Up to 2 mm Chamfer or 2 mm Radius |
| Chamfer Angle | ° | 45° |
| Inlet Size | – | Rc 1/4 |
| Mass (Weight) | kg | 1.8 |
Accessories Included
Indexable Insert 9.525 (Installed)
Indexable Insert 9.525
Adjustment Gauge
Spanner T-9F
Protective Cap
Hook Spanner 58-65
Bushing R 1/4 x NPT 1/4
Chamfer Angle, Width and Radius
Mild Steel(mm)
| X | Y |
| 2 | 2 |
| Mild Steel(mm) | |
| Radius | 2 |
