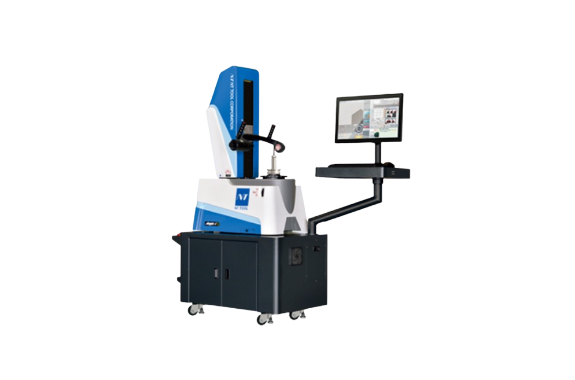

NT Tool Corporation AOTP・A Aegis-i Series Eagle
Manufacturer: NT TOOL CORPORATION
Model: AOTP・A
Feature
- Milling chucks can be tightened on-machine.(MAX100Nm)
- Software can be customized to meet requirements.
- Easy operation reduces human errors.
- Contactless measurement does not damage cutting edges.
- Cutting tools in various shapes can be measured.
- Max Measurement X-axis : φ400mm Z-axis : 500mm
Specifications

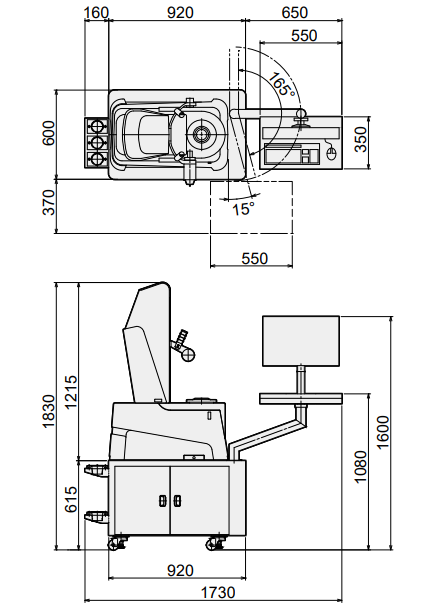

| External Dimensions | 1730mm x 600mm x 1830mm (WxDxH) |
| Weight | 300kg |
| Power Supply | 100 ~ 240V AC, 50/60Hz |
| Power Consumption | 300W |
| Air Pressure | 0.35 MPa or more |
| Measurement | X-axis : ø400mm Z-axis : 500mm * |
| Minimum Reading | 0.001mm |
| Spindle Size | BT50 (Adapters for different spindle sizes available.) |
| Clamp Method | Mechanical clamp |
| Specifications Of Camera | 1.3 million pixel CCD monochrome |
| Screen Magnification Ratio | 30× Magnification |
| Display Size | 21.5″ |
| Cutting Edge Measurement Range | 9.0 x 6.5mm |
| Menu Manipulation Method | Touch panel, mouse, keyboard |
| Language Selection | English, Japanese, Korean, Chinese, Spanish |
| Accessories | Adapter tray, Cover, Cleaning putty, Booster valves and tanks |
