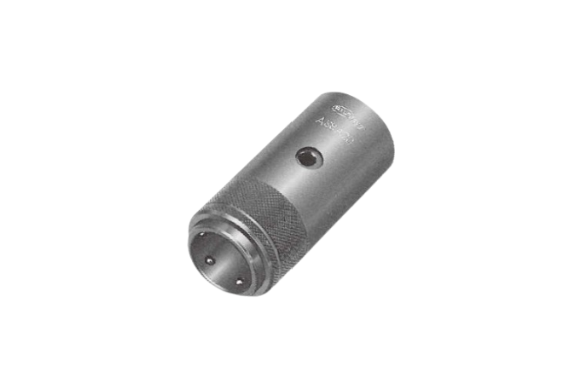

NT Tool Corporation ASBA Series Quick Change Drilling Chuck
Manufacturer: NT TOOL CORPORATION
Model: ASBA Series
Features
- One hand quick change drilling chuck.
- For JIS (B6110) drilling spindle.
Specifications

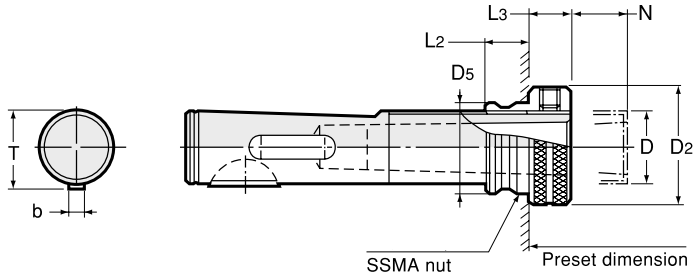

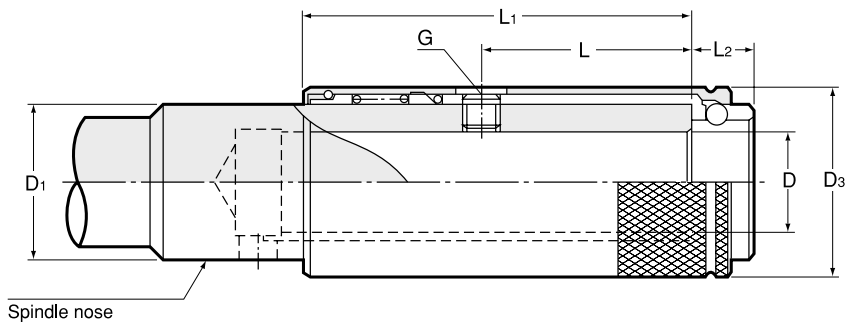

| Model | Model | Adjustable adapter | D H6/h6 | D1 | L ±0.2 | G | D2 ±0.2 | D3 ±0.3 | D5 -0.04 -0.1 | L1 | L2 | L3 | b | T | N | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASBA 16 | SSMA 16 | 16 | 16 | 25 | 34 | M6 | 26 | 30 | 19.9 | 64 | 9.5 | 9 | 5 | 17.1 | 28 | 0.2 |
| ASBA 20 | SSMA 20 | 20 | 20 | 32 | 34 | M6 | 33 | 38 | 25.4 | 69.5 | 11 | 9 | 5 | 21.1 | 28 | 0.2 |
| ASBA 25 | SSMA 25 | 25 | 25 | 37 | 38 | M8 | 40 | 45 | 31.9 | 75.5 | 12 | 10 | 6 | 26.5 | 30 | 0.4 |
| ASBA 28 | SSMA 28 | 28 | 28 | 40 | 38 | M8 | 42 | 48 | 33.9 | 77.5 | 12 | 10 | 6 | 29.5 | 30 | 0.4 |
| ASBA 32 | SSMA 32 | 32 | 32 | 45 | 45 | M8 | 47 | 55 | 37.9 | 89 | 13.5 | 10 | 8 | 33.5 | 36 | 0.6 |
| ASBA 36 | SSMA 36 | 36 | 36 | 50 | 45 | M8 | 54 | 60 | 43.4 | 96.5 | 16 | 10 | 8 | 37.5 | 36 | 0.7 |
| ASBA 48 | SSMA 48 | 48 | 48 | 67 | 57 | M10 | 72 | 80 | 57.9 | 122 | 20 | 14 | 10 | 49.9 | 47 | 1.4 |
