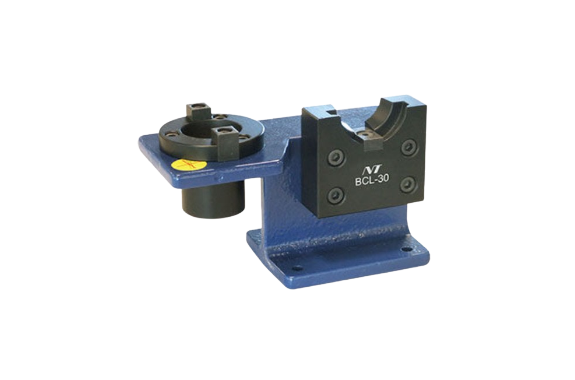

NT Tool Corporation BCL Series BT Clamper
Manufacturer: NT TOOL CORPORATION
Model: BCL Series
Feature
- Clamping jig for BT shank holders.
- Both caps and retention studs of BT shank tool holders can be tightened on one clamper.
- Used for installing or removing cutting tools and retention studs from BT milling chucks, collet holders, etc.

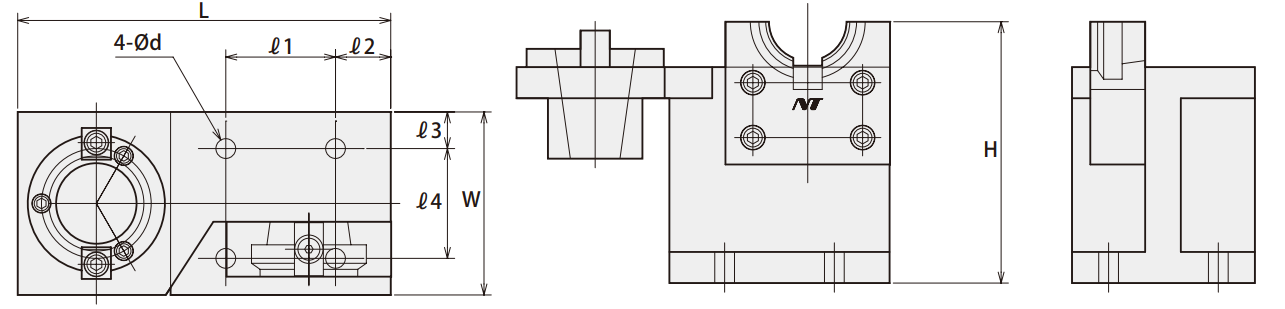

Dimensions
| Model | L | ℓ1 | ℓ2 | ℓ3 | ℓ4 | H | W | d | Shank size | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| BCL-30 | 210 | 90.5 | 15 | 13 | 70.5 | 127 | 100 | 9 | BT30 | 4 |
| BCL-40 | 210 | 90.5 | 15 | 13 | 70.5 | 127 | 100 | 9 | BT40 | 4 |
| BCL-50 | 275 | 115 | 22 | 14 | 112 | 198 | 151 | 9 | BT50 | 8 |
