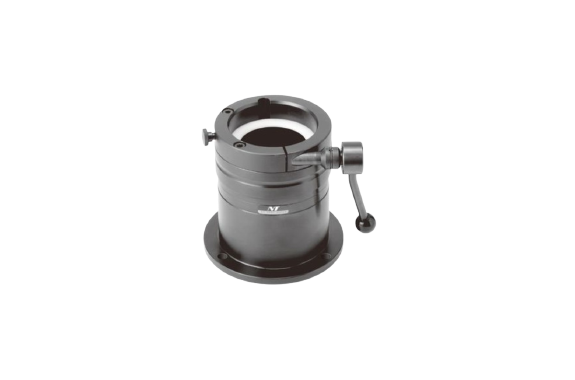

NT Tool Corporation HCL Series HSK Clamper
Manufacturer: NT TOOL CORPORATION
Model: HCL Series
Feature
- Clamping jig for HSK shank (all types) and UT shank holders.
- For clamping of milling chucks and collet holder caps.

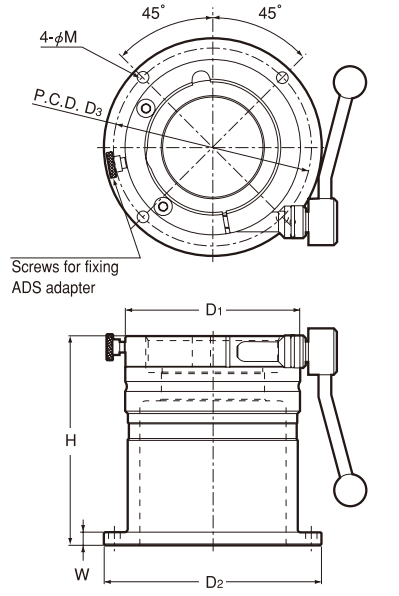

Dimensions
| Model | Shank size | D4 | L | kg | Body |
|---|---|---|---|---|---|
| ADS -6325 | HSK25 | 63 | 24.2 | 0.5 | HCL-63 |
| ADS -6332 | HSK32, C3*2 | 63 | 24.2 | 0.4 | HCL-63 |
| ADS -6340 | HSK40, C4 | 63 | 24.2 | 0.3 | HCL-63 |
| ADS -6350 | HSK50, UTS5040, C5 | 63 | 24.2 | 0.2 | HCL-63 |
| ADS -10063 | HSK63, UTS6350, C6 | 100 | 24.2 | 0.9 | HCL-100 |
| ADS -10080 | HSK80, C8 | 100 | 24.2 | 0.6 | HCL-100 |
