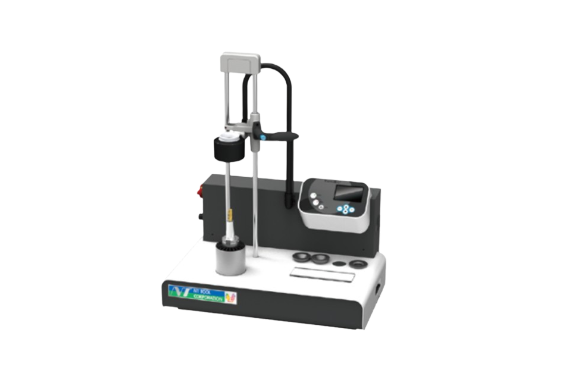

NT Tool Corporation ISG3430 Shrink Fit System Magnetic Induction Heating Device
Manufacturer: NT TOOL CORPORATION
Model: ISG3430
Feature
- Induction heating type heating device for shrink fit chucks.
Specifications
| Model | ISG3430TLK-11-WS |
| Code | 3065 00013430 |
| Type | Manual operation Induction heating |
| Output | 11kw |
| Diameter | Ø3 ～ Ø32mm Up to Ø50mm by replacing the coil. (Option) |
| Usable tool | Carbide For use of HSS cutting tools, please contact NT TOOL. |
| Length | For BT50, 380mm or less Projection length of tool holder (GL) + projection length of cutting tool = 420mm or less For BT50, 380mm or less. |
| Unit dimensions | L 540 X W 780 X H 965 mm |
| Diameter inside a coil | ISG3200-1 : Ø54mm ISG3200-2 : Ø87mm (Option) ISG3200-2-NT Ø35mm (Option) |
| Weight | 45kg |
| Power supply | 3 X 400V ※Transformer is necessary. 10m length power cable is included. |
