NT Tool Corporation KTL Series Quick Change Tapping Chuck
Manufacturer: NT TOOL CORPORATION
Model: KTL Series
Features
- Small shank and projection length makes tapping job very stable.
- Simple spindle designing/machining makes machine compact.
- Length compensation allows for feed discrepancies between spindle and tap.
- Quick change
Specifications

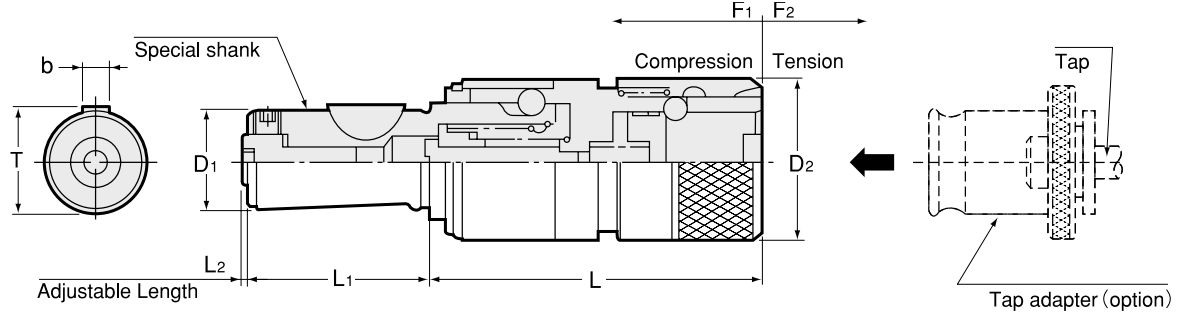

| Model | Tap Size | Adapter Size | Axial Compensation F1 Compression | Axial Compensation F2 Tension | D1 h6 | D2 | L | L1 ±0.1 | T | b | L2 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KTL 013-3 | M3〜M8 (M10) U1/4〜U5/16 (U3/8) | 0 | 3 | 10 | 16 | 23 | 65 | 31 | 17.1 | 5 | 1.5〜3.5 | 0.2 |
| KTL 010-0 | M3〜M8 (M10) U1/4〜U5/16 (U3/8) | 0 | 0 | 10 | 16 | 23 | 65 | 31 | 17.1 | 5 | 1.5〜3.5 | 0.2 |
| KTL 113-3 | M3〜M12 (M15) U1/4〜U7/16 (U9/16) Pipe(PT,PS,PF)1/8〜1/4 | 1 | 3 | 10 | 20 | 32 | 70 | 37 | 21.1 | 5 | 1.5〜3.5 | 0.4 |
| KTL 110-0 | M3〜M12 (M15) U1/4〜U7/16 (U9/16) Pipe(PT,PS,PF)1/8〜1/4 | 1 | 0 | 10 | 20 | 32 | 70 | 37 | 21.1 | 5 | 1.5〜3.5 | 0.4 |
| KTL 4015-3 | M6〜M18 U1/4〜U3/4 | 40 | 3 | 12 | 28 | 40 | 85 | 49 | 29.5 | 6 | 1.5〜3.5 | 0.8 |
| KTL 4012-0 | M6〜M18 U1/4〜U3/4 | 40 | 0 | 12 | 28 | 40 | 85 | 49 | 29.5 | 6 | 1.5〜3.5 | 0.8 |
| KTL 215-3 | M8〜M22 U3/8〜U7/8 Pipe(PT,PS,PF)1/8〜1/2 | 2 | 3 | 12 | 28 | 50 | 95 | 49 | 29.5 | 6 | 1.5〜3.5 | 1.2 |
| KTL 212-0 | M8〜M22 U3/8〜U7/8 Pipe(PT,PS,PF)1/8〜1/2 | 2 | 0 | 12 | 28 | 50 | 95 | 49 | 29.5 | 6 | 1.5〜3.5 | 1.2 |
