NT Tool Corporation PHS Series Collet With Stopper Pin
Manufacturer: NT TOOL CORPORATION
Model: PHS Series
Features
- Collet for Power Hydro Chuck PHC-A.
- Using PHS collet with stopper pin protect iinner shank from damage/scratch.
Specifications
■ For cutter with oil hole

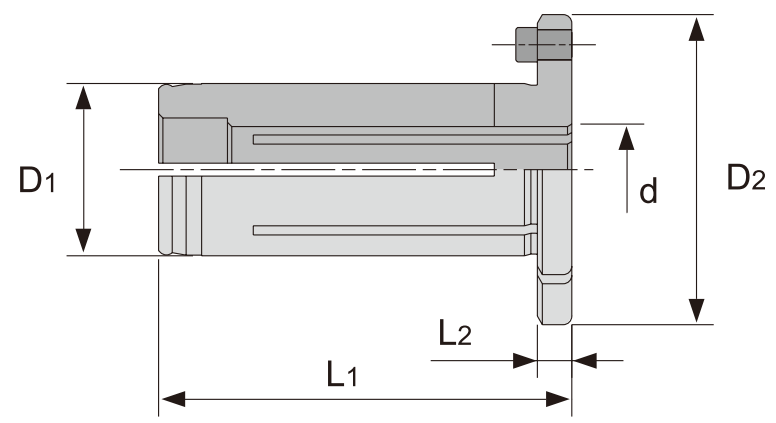

| Code | Model | D1 | D2 | L1 | L2 | d |
|---|---|---|---|---|---|---|
| 3940 300512 | PHS 12 – d – OH | 12 | 26 | 48 | 4 | 3, 4, 5, 6, 7, 8, 9, 10 |
| 3940 300520 | PHS 20 – d – OH | 20 | 36 | 48 | 4 | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 |
■ For collet through coolant
| Code | Model | D1 | D2 | L1 | L2 | d |
|---|---|---|---|---|---|---|
| 3940 300612 | PHS 12 – d – C | 12 | 26 | 48 | 4 | 3, 4, 5, 6, 7, 8, 9 |
| 3940 300620 | PHS 20 – d – C | 20 | 36 | 48 | 4 | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 |
