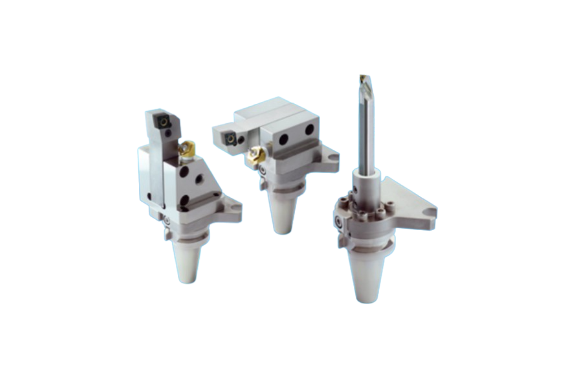

NT Tool Corporation SBV･A / SBH･A / TSB Series Turning Tools For Brother’s SPEEDIO
Manufacturer: NT TOOL CORPORATION
Model: SBV･A / SBH･A / TSB Series
Specifications

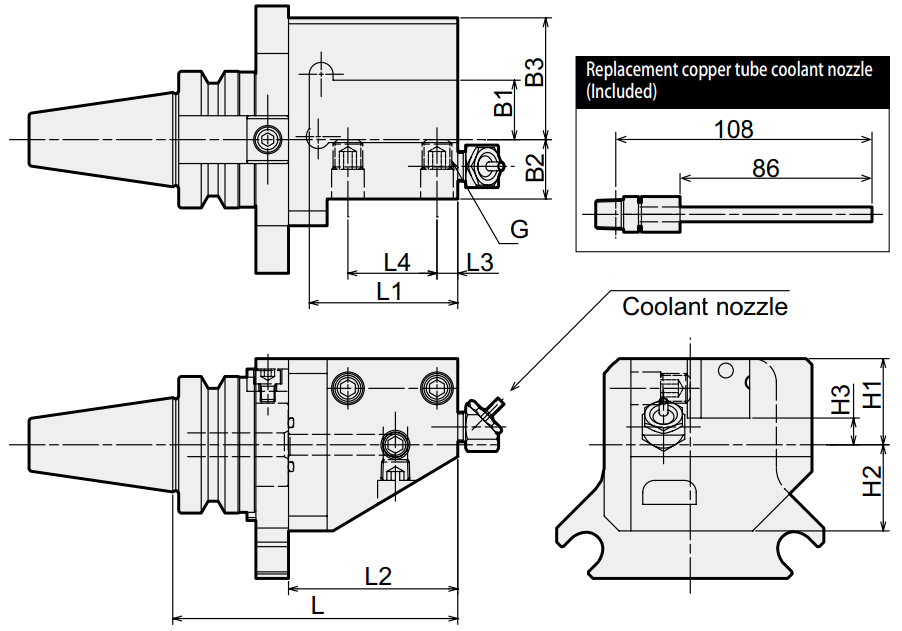

| Model | L | L1 | L2 | L3 | L4 | B1 | B2 | B3 | H1 | H2 | H3 | G | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BT30 -SBV2020 | RA-98 | 98 | 50 | 57 | 7 | 30 | 20 | 20 | 41 | 29 | 29 | 9 | M10 | 2.0 |
| LA-98 | ||||||||||||||

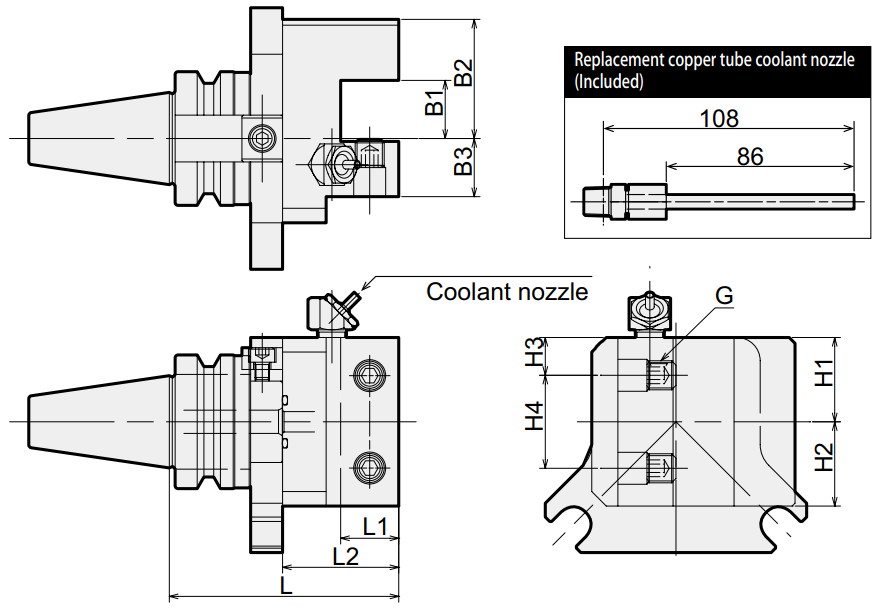

| Model | L | L1 | L2 | B1 | B2 | B3 | H1 | H2 | H3 | H4 | G | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BT30 -SBH2020 | 81 | 20 | 40 | 20 | 41 | 20 | 20 | 29 | 29 | 13 | M10 | 1.8 |

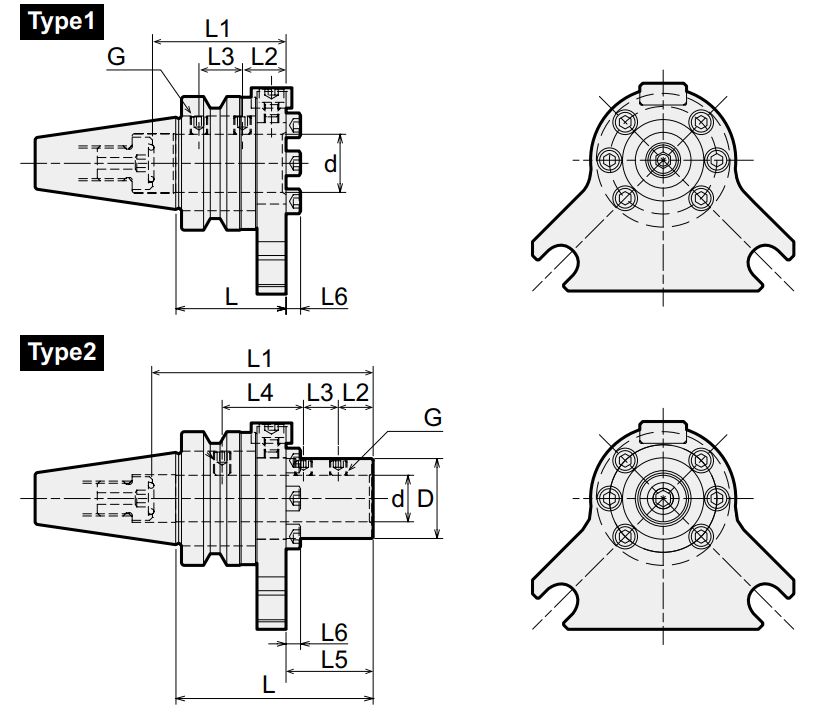

| Model | Type | d | D | L | L1 | L2 | L3 | L4 | L5 | L6 | G | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BT30 -TSB10 -38 | 1 | 10 | – | 38 | 40 | 15 | 15 | – | 5 | 5 | M6 | 0.8 |
| BT30 -TSB10 -68 | 2 | 10 | 20 | 68 | 45 | 12 | 12 | – | 30 | 5 | M6 | 0.9 |
| BT30 -TSB12 -38 | 1 | 12 | – | 38 | 40 | 15 | 15 | – | 5 | 5 | M6 | 0.8 |
| BT30 -TSB12 -68 | 2 | 12 | 22 | 68 | 65 | 12 | 12 | 26 | 30 | 5 | M6 | 0.9 |
| BT30 -TSB16 -38 | 1 | 16 | – | 38 | 46 | 15 | 15 | – | 5 | 5 | M6 | 0.8 |
| BT30 -TSB16 -68 | 2 | 16 | 27.5 | 68 | 76 | 12 | 12 | 26 | 30 | 5 | M6 | 0.9 |
| BT30 -TSB20 -38 | 1 | 20 | – | 38 | 46 | 15 | 15 | – | 5 | 5 | M6 | 0.8 |
