NT TOOL CORPORATION
NT Tool Corporation WENC/WENRC Series Quick Change Tap Adapter
Manufacturer: NT TOOL CORPORATION
Model: WENC/WENRC Series
Features
- All tapping jobs by using carbide taps
- Tap shank is firmly clamped by collet.
- Length adjustment simplifies your depth control of reground tap.
Specifications

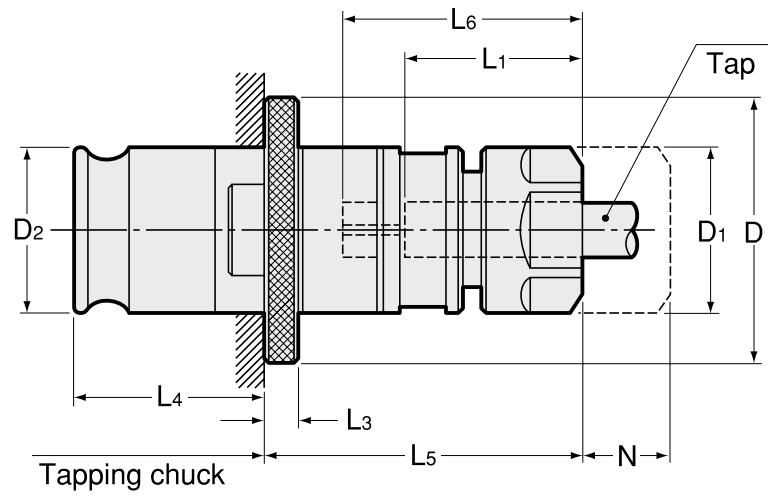

| Model | Tap Size | Chuck Size | Adjustable Length (N) | D | D1 | D2 | L1 | L3 | L4 | L5 | Spanner | Recommended Clamping Torque (N·m) | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WENC0 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 8 | 22 | 19 | 13 | 20 | 4 | 19.5 | 33 | Flat 17mm width | 15 ~ 20 | 0.1 |
| WENC1 | M4 ~ M10 U1/4 ~ U3/8 | 1 32 | 10 | 30 | 19 | 19 | 24 | 4 | 21.5 | 36 | Flat 17mm width | 15 ~ 20 | 0.2 |
| WENC1 | M11 ~ M12 U7/16 ~ U1/2 Pipe(PT,PS,PF)1/8 | 1 32 | 10 | 30 | 26 | 19 | 25 | 4 | 21.5 | 41 | S-0 | 30 ~ 35 | 0.2 |
| WENC2 | M7 ~ M12 U3/8 ~ U1/2 | 2 | 15 | 48 | 26 | 31 | 25 | 5 | 35 | 54 | S-0 | 30 ~ 35 | 0.5 |
| WENC2 | M14 ~ M20 U9/16 ~ U3/4 | 2 | 15 | 48 | 34 | 31 | 34.5 | 5 | 36.5 | 63.5 | FK-0034 | 40 ~ 45 | 0.5 |
| WENRC2 | Pipe(PT,PS,PF)1/8 | 2 | 15 | 48 | 26 | 31 | 30 | 5 | 35 | 59 | S-0 | 30 ~ 35 | 0.6 |
| WENRC2 | M14 ~ M16 U9/16 | 2 | 15 | 48 | 34 | 31 | 39 | 5 | 35 | 68.5 | FK-0034 | 40 ~ 45 | 0.6 |
