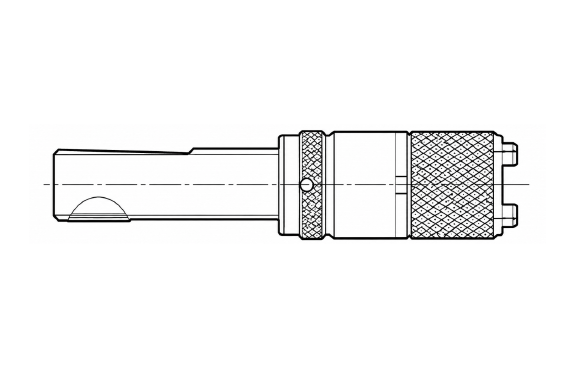

NT Tool Corporation WFP/Tr Series Quick Change Tapping Chuck
Manufacturer: NT TOOL CORPORATION
Model: WFP/Tr Series
Features
- Short length and small diameter
- Quick-change
- Ragial Float
- Corrects alignment discrepancies between pre-drilled hole and tap

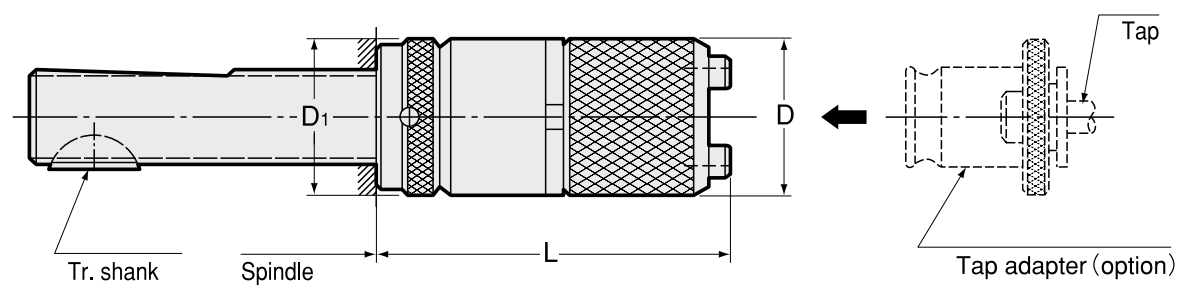

Specifications
| Model | Tap Size | Adapter Size | Radial Float | D | D1 | L | kg |
|---|---|---|---|---|---|---|---|
| WFP0/Tr.16×1.5 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0.25 | 23 | 25 | 65 ~ 95 | 0.3 |
| WFP1/Tr.20×2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4 | 1 | 0.5 | 32 | 32 | 70 ~ 100 | 0.5 |
| WFP40/Tr.28×2 | M6 ~ M18 U1/4 ~ U3/4 | 40 | 0.75 | 40 | 40 | 89 ~ 121 | 1.0 |
| WFP2/Tr.28×2 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 1 | 50 | 50 | 96 ~ 128 | 1.4 |
| WFP3/Tr.36×2 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 1.5 | 72 | 50 | 138 ~ 177 | 3.7 |
