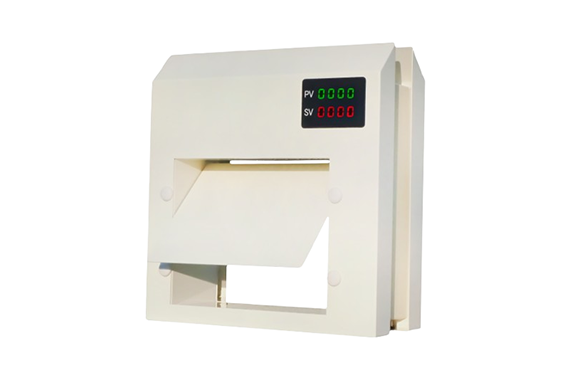

Okaya RDP Room Damper

Manufacturer: Okaya Seiritsu Engineering Co., Ltd.
Model: RDP

Features

＜Ductless＞
No extensive duct work is required.

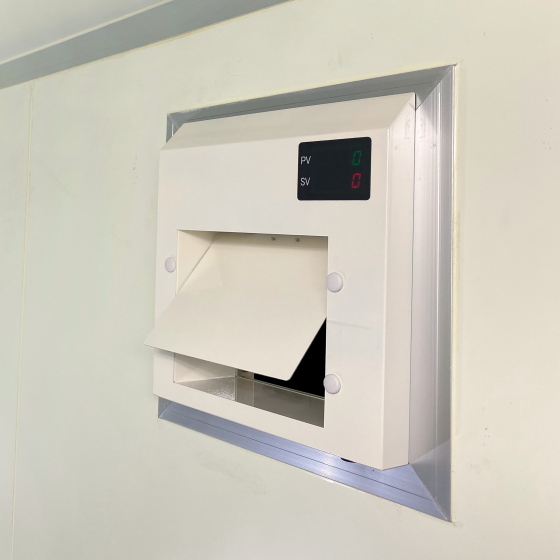

Simply install air supply (exhaust) devices in important rooms and mount RDP units on walls between rooms to enable easy stepwise differential pressure control.
＜No adjustment required at the time of installation＞
Simply set the required differential pressure with a remote control.
Adjustment man-hours can be greatly reduced.
＜Visualization of differential pressure＞
Since this product is equipped with a differential pressure gauge, it can monitor the differential pressure between rooms by itself.
In addition, equipped with RS485, centralized monitoring is also possible.

●Pressure detection section
Detection range	－100 ～＋100Pa
Allowable overpressure	10kPa
Pressure transduction accuracy	±2%/FS (FS: full scale of pressure range)
Temperature error	Zero point: ±0.4Pa/°C, Span: Within ±1.2Pa/°C
●Controller section
Display part	7-segment LED, 4 digits x 2 rows (During operation, upper row: current pressure (green), lower row: set pressure (red))
Various setting methods	Set by infrared remote control
Operation speed adjustment	10 ～ 100％
●Input/output section
Communication	RS485 communication (MODBUS RTU)
Communication functions	Acquisition of current differential pressure, current opening and various set values, and change of various set values Acquisition of alarm status, and instruction for damper forced operation
●Motor section
Rated torque	2N・m
Operation angle	Approx. 90° (can be changed by setting)
Operation time	Approx. 15 sec/90° (can be changed by setting)
●General specifications
Power-supply voltage	AC100V ±10%
Power consumption	Approx. 4 VA
Ambient temperature	0℃～＋50℃
Mass	Approx. 3.5 kg
Paint color	2.5Y9/1
●Installation environment
Wall thickness	40-80 mm (types with a wall thickness of 80 mm or more to be developed)
