Japan, ORGANO
Organo Capsule Filter
Product made in Japan
Manufacturer: Organo
High-performance capsule filter for various applications
Electronics
Pharmaceuticals / Cosmetics / Medical Device
Schools / Research Institutes / Quality Control
Final filter for ultrapure water equipment
Media sterilization in the pharmaceutical field
Filtration filter for various processes
Disposable filter for integration in equipment
Features
As the filter is shipped after being cleaned with ultrapure water (≧18 MΩ cm resistivity), there is little elution from the filter, enabling stable analysis results.
The product has passed all integrity tests (non-destructive inspection).
Compact, lightweight design enables efficient sampling.

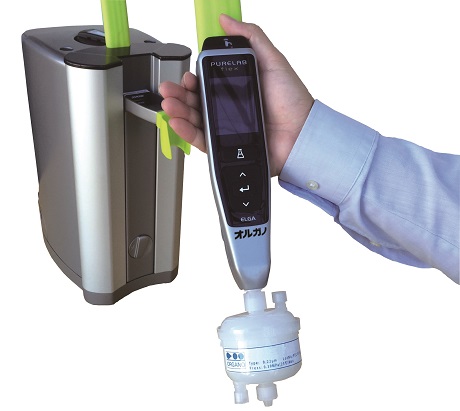

Image shows mounted state
Specifications
| Model | Pore diameter (μm) | Dimension (mm) | Max. working temperature | Pressure MPa | Interface | Material | ||||
| Φ x H(mm) | IN | OUT | Vent | Drain | Body | Filter | ||||
| Capsule filter | Abs 0.22 | 72.5 x 85 | 40 (0.15MPa) | 0.39 (25°C) | NPT1/4 | NPT1/4 | NPT1/8 | NPT1/8 | PP | PES |
