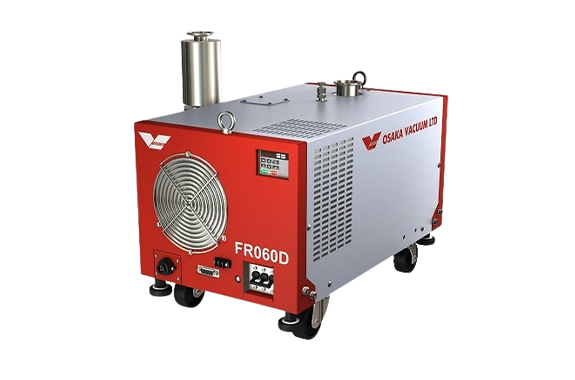

Osaka FR060D Dry Vacuum Pumps
Manufacturer: Osaka Vacuum, Ltd.
Model: FR060D
Features
- Enable operation from atmospheric pressure.
- Volume flow rate is 800L/min at atmospheric pressure.
- Enable handing water vapor.
- Vapor tolerance is 500g/hr.
- Reducing evaculation time.
- Consatnt volume flow rate 800L/min over wide pressure range to ultimate pressure.
- Air cooling.
Specifications
| Model | FR060D | ||
| Volume flow rate (L/min) | Maximum | 1000 | |
| Constant | 800 | ||
| Base pressure (Pa) | Without gas ballast | 1.0 | |
| With gas ballast | 2.0 | ||
| Connection | Inlet | KF（NW）40 | |
| Outlet | KF（NW）40 | ||
| Max vapor tolerance※1 (g/hr) | 500 | ||
| Lubrication oil quantity (mL) | 90 | ||
| Power consumption (kW) | At base pressure | 1.1 | |
| Maximum | 1.3 | ||
| Power supply | Voltage (V) | 200-240 | |
| Frequency (Hz) | 50/60 | ||
| Phase | Single / Three | ||
| Tolerable voltage fluctuation※2 | ±10％ | ||
| Power capacity (kVA) | 3.0 | ||
| Electric current (A) | Single phase | 11.1 | |
| Three phase | 6.5 | ||
| Cooling system | Air cooling | ||
| Weight (kg) | 75 | ||
| Ambient temperature (℃) | 5-40 | ||
*1 It is an amount of the maximum processing when the gas ballast is “ON”.
*2 Contact Osaka Vacuum for special specification.

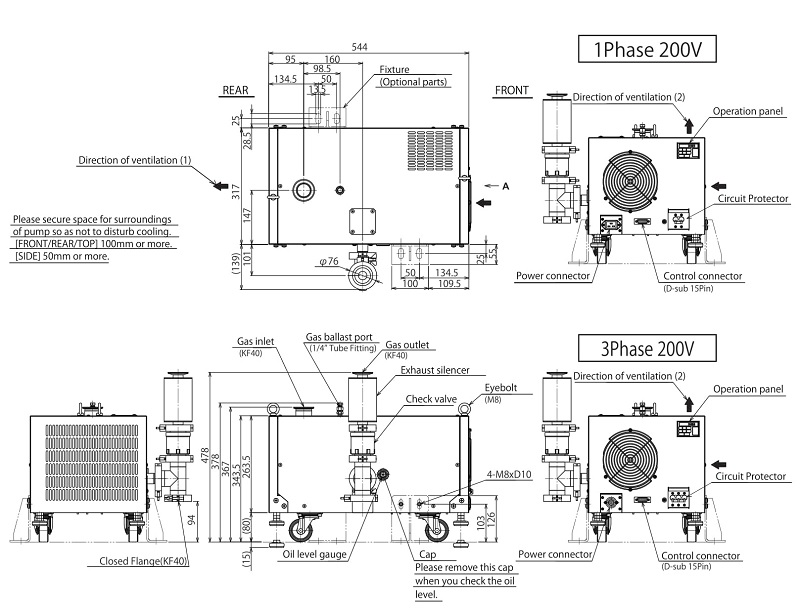

Dimensions
