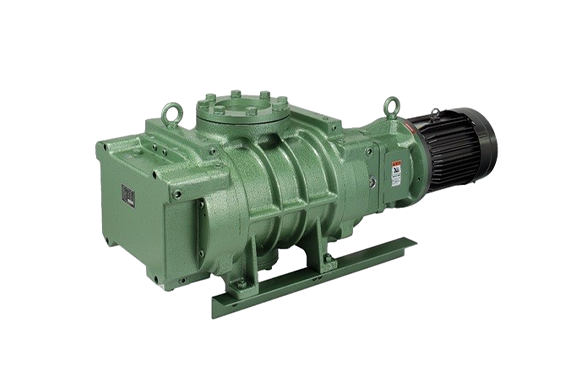

Osaka RD1500 Roots Vacuum Pumps
Manufacturer: Osaka Vacuum, Ltd.
Model: RD1500
Features
- Strong rotary shaft.
→ Enables start-up and continuous operation in low vacuum.
Optimal motor capacity can be selected to fit the specific load.
→ Less equipment cost, less operation cost.
Wide range of pump speed lineup.
→ 90～12,000m3/h
Work with various backing pumps.
→Roots＋oil-sealed rotary, liquid-ring
Specifications
| Model | RD1500 | RD1510 | |
| Inlet flange | 150A JIS10KFF | ||
| Nominal volume flow rate ※1 (m3/h) | 50Hz | 1350 | |
| 60Hz | 1630 | ||
| Allowable pressure difference (kPa) [When using a standard motor] | 50Hz | 7.0 | 19 |
| 60Hz | 7.0 | 16 | |
| Base pressure (Pa) | Back pump single-stage RP | 7×10-2 | |
| Back pump 2-stage RP | 1.3×10-2 | ||
| Volume flow rate of standard backing pump (m3/h) | 220～450 | ||
| Rotation speed (r/min) | 50Hz | 1500 | |
| 60Hz | 1800 | ||
| Standard motor output (kW) | 5.5 | 11 | |
| Oil capacity (L) | 4.0 | ||
| Cooling water consumption ※2 (m3/h) | 0.4 | ||
| Weight (kg) | With totally enclosed fan cooling motor | 530 | 570 |
| Without motor | 460 | ||
*1 : The effective volume flow rate varies according to the backing pump. For details, contact our sales representative.
*2 : Maximum cooling water temperature should be 30℃.
-Allowable ambient temperature: 10 to 40℃ during operation, -5 to +60℃ in storage.
-Drain water before storing to prevent freezing over.
Dimensions
