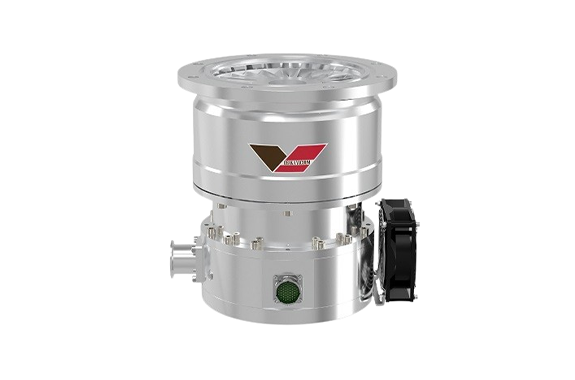

Osaka TG1300M Turbo Molecular Pumps
Manufacturer: Osaka Vacuum, Ltd.
Model: TG1300M
Features
Any orientation
- Compact size
- Energy-saving
- Quick starts and stops
- Maintenance call
- Vibration free
- Model coupling free
- Automatic calibration
- High throughput
- Rotational speed control
- Serial communication
- Safety standards certification for NRTL SEMI-S2 CE
Specifications
| Inlet flange | VG200 CF200 ISO-B200 | |
| Volume flow rate | N2 (L/s) | 1300 |
| N2 (with protectivescreen) (L/s) | 1230 | |
| H2 (L/s) | 1200 | |
| Max. compression ratio | N2 | 1×108 |
| H2 | 1.5×104 | |
| Base pressure | VG・ISO-B/CF (Pa) | <1×10-6 <1×10-7 |
| VG・ISO-B/CF (Torr) | <7.5×10-9 <7.5×10-10 | |
| Max. throughput※1 | N2 (sccm) | 3000 |
| Startup time | (min) | 4~5 |
| Shutdown time | (min) | 4~5 |
| Max. backing pressure | (Pa / Torr) | 500 / 3.8 |
| Recommended backing vacuum pump | (L/min) | ≧250 |
| Position | Any orientation | |
| Weight (kg) VG, ISO-B/CF | 34 / 42 | |
| Controller | TC010MA | |
| Special specifications *Contact our sales representative for | -Chemical-use -Thermal insulation TG-MI -Ultra low vibration TG-ML -Ultra high vacuum TG-MU -Against radiation TG-MR | |
- *1: When using a backing vacuum pump of 1000L/min.
- [Ambient temperature for use]
- The ambient temperature range to ensure you reach the ultimate pressure is 10-23℃. The permissible ambient temperature is 10-32℃ for air cooling type and 10-40℃ for water cooling type. The maximum temperature for the cooling water which ensures the ultimate pressure is 30℃ and the allowable temperature range for cooling water is 10-35℃.

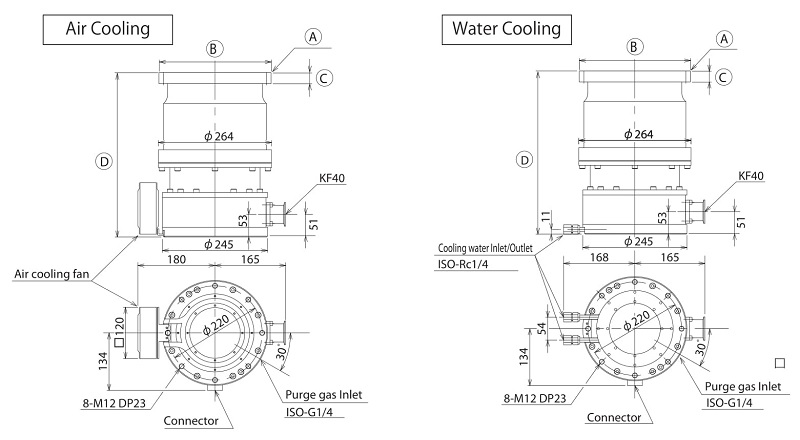

Dimensions
| Ⓐ | Ⓑ | Ⓒ | Ⓓ |
| VG200 | φ300 | 16 | 324 |
| CF200 | φ253 | 25 | 385 |
| ISO-B200 | φ285 | 16 | 359 |
- Bolt holes for the flange on the intake are arranged symmetrically around the centerline.
