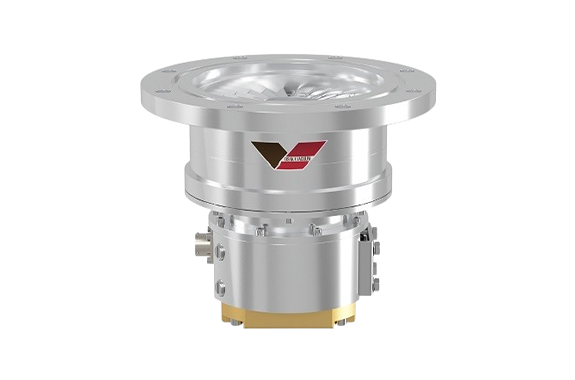

Osaka TG450F Turbo Molecular Pumps
Manufacturer: Osaka Vacuum, Ltd.
Model: TG450F
Features
- Any orientation
- Compact size
- Energy-saving
- Quick start up
- Quick shut down with gas vent
- Durable structure for air inrush
- Serial communication
※RS232C Serial interface - Certificated safety standard NRTL / SEMI-S2 / CE
Specifications
| Inlet flange | VG150 ISO-B160 CF160 | |
| Volume flow rate | N2 (L/s) | 450 |
| N2 (with protective screen) (L/s) | 430 | |
| H2 (L/s) | 240 | |
| Max. compression ratio | N2 | 1×108 |
| H2 | 2×103 | |
| Base pressure | (Pa) (Torr) | <1×10-6 <7.5×10-9 |
| Max. throughput※1 | (sccm) | 500 |
| Startup time | (min) | 2-2.5 |
| Shutdown time | (min) | 5-6.5 |
| Max. backing pressure | (Pa/Torr) | 260/2 |
| Recommended backing vacuum pump | (L/min) | ≧80 |
| Position | Any orientation | |
| Weight | VG・ISO-R/CF (kg) | 7/10 |
| Controller | TC353 | |
- *1: When using a backing vacuum pump of 160L/min.
- [Ambient temperature for use]
- The ambient temperature range to ensure you reach the ultimate pressure is 10-23℃. The permissible ambient temperature is 10-32℃ for air cooling type and 10-40℃ for water cooling type. The maximum temperature for the cooling water which ensures the ultimate pressure is 30℃ and the allowable temperature range for cooling water is 10-35℃.
- [Corresponding gases]
- Some service gases can deteriorate the lubrication grease and internal parts. Contact Osaka Vacuum for a list of applicable gas types.

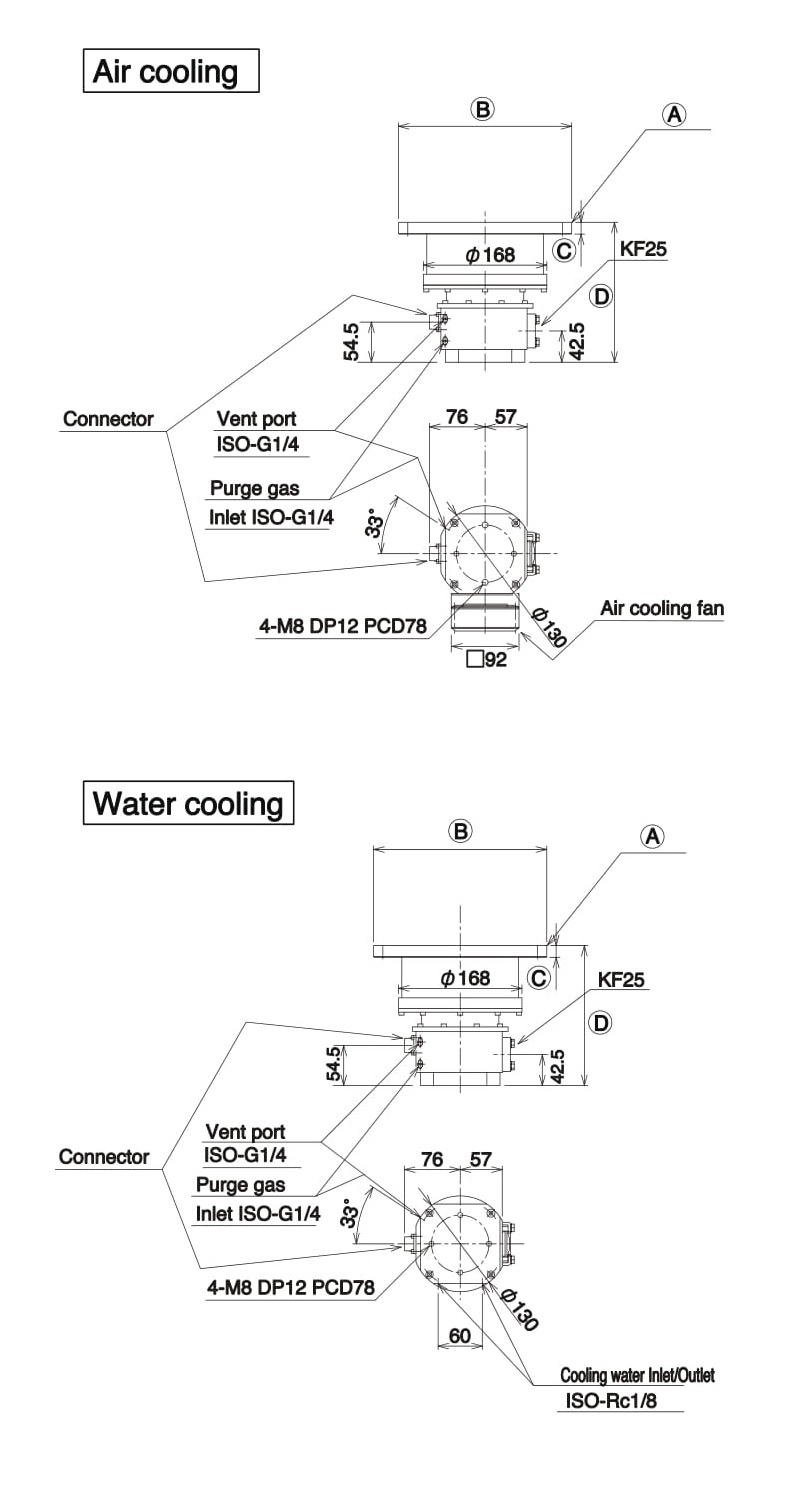

Dimensions
| A | B | C | D |
| VG150 | φ235 | 16 | 190 |
| CF160 | φ203 | 22 | 190 |
| ISO-B160 | φ225 | 16 | 190 |
- Bolt holes for the flange on the intake are arranged symmetrically around the centerline.
