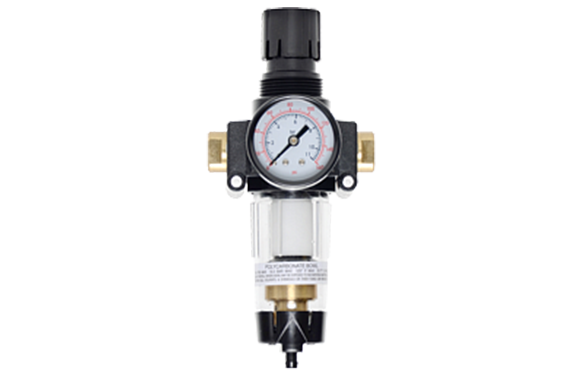

Ross Asia Bantam series Port sizes 1/8″ and 1/4″. Flow rates up to 24 scfm (680 l/min)
Made in Japan
Manufacturer : Ross Asia
Model : Bantam series
INTEGRATED FILTER/REGULATORS – KEY FEATURES
- Filter and Pressure Regulator combined into a single module to provide the compactness needed where space is limited
- All sizes have essentially the same operating characteristics as their corresponding individual filters and regulators
- All Filter/Regulator include internal automatic filter drain or manual drain options
- Pressure gauge included
- Regulator function is self relieving, and includes front and rear gauge ports
- 5-, 20-, 40-micron filter elements available (see table below)
- Metal or high strength polycarbonate bowl
- Modular or in-line mounting
- MD3TM and MD4 TM series can be modularly connected to a L-O-X ® Lockout Valve
- Stainless steel Filter/Regulator and L-O-X ® Lockout Valve combination available
Modular Integrated Filter/Regulators
Port Sizes: 1/8 & 1/4 – Flow to 24 scfm
Port Size |
Automatic Drain | Manual Drain | ||
Polycarbonate Bowl | Metal Bowl | Polycarbonate Bowl | Metal Bowl | |
Model Number | Model Number | Model Number | Model Number | |
With THREADED PORTS – Piston Type Regulator: | ||||
1/8 NPTF | 5D01C0110 | 5D01C0210 | 5D01C0310 | 5D01C0410 |
1/8 G | C5D01C0110 | C5D01C0210 | C5D01C0310 | C5D01C0410 |
1/4 NPTF | 5D02C0110 | 5D02C0210 | 5D02C0310 | 5D02C0410 |
1/4 G | C5D02C0110 | C5D02C0210 | C5D02C0310 | C5D02C0410 |
With Quick-Connect TUBE FITTINGS – Piston Type Regulator: | ||||
1/4 | 5D03C0110 | 5D03C0210 | 5D03C0310 | 5D03C0410 |
3/8 | 5D04C0110 | 5D04C0210 | 5D04C0310 | 5D04C0410 |
4mm | 5D05C0110 | 5D05C0210 | 5D05C0310 | 5D05C0410 |
6mm | 5D06C0110 | 5D06C0210 | 5D06C0310 | 5D06C0410 |
8mm | 5D07C0110 | 5D07C0210 | 5D07C0310 | 5D07C0410 |
10mm | 5D08C0110 | 5D08C0210 | 5D08C0310 | 5D08C0410 |
With Quick-Connect TUBE FITTINGS – Diaphragm Type Regulator: | ||||
1/4 | 5D03C0120 | 5D03C0220 | 5D03C0320 | 5D03C0410 |
3/8 | 5D043C0120 | 5D04C0220 | 5D04C0320 | 5D04C0410 |
4mm | 5D053C0120 | 5D05C0220 | 5D05C0320 | 5D05C0410 |
6mm | 5D06C0120 | 5D06C0220 | 5D06C0320 | 5D06C0410 |
8mm | 5D07C0120 | 5D07C0220 | 5D07C0320 | 5D07C0410 |
10mm | 5D08C0120 | 5D08C0220 | 5D08C0320 | 5D08C0410 |
FLOW CHARTS
Specifications
Construction Design
|
Filter – Fiber
Regulator – Piston
|
Temperature
|
Ambient/Media:
Polycarbonate Bowl: 40° to 125°F (4° to 52°C) Metal Bowl: 40° to 150°F (4° to 66°C)
|
Fluid Media
|
Compressed air |
Operating Pressure
|
Automatic Drain Models
Polycarbonate Bowl: Up to 150 psig (up to 10 bar)
Metal Bowl: Up to 200 psig (up to 14 bar)
Manual Drain Models
Polycarbonate Bowl: 0 to 150 psig (0 to 10 bar)
Metal Bowl: 0 to 200 psig (0 to 14 bar)
|
Outlet Pressure
|
Adjustable up to 100 psig (7 bar). |
Pressure Gauge | 0 to 160 psig (0 to 11 bar); 1/8 NPT gauge ports front and rear |
Panel Mounting | 1-3/16 inch (30 mm) hole required |
Construction Material
|
Filter Element: 5-micron rated polyethylene
Body: Acetal
Bowl: Polycarbonate or Aluminum
Seals: Nitrile
|
