Sakaguchi Electric Heaters CO.

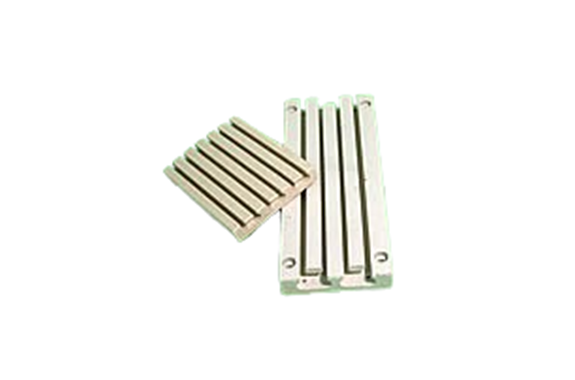

Sakaguchi Angular hot plate
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications

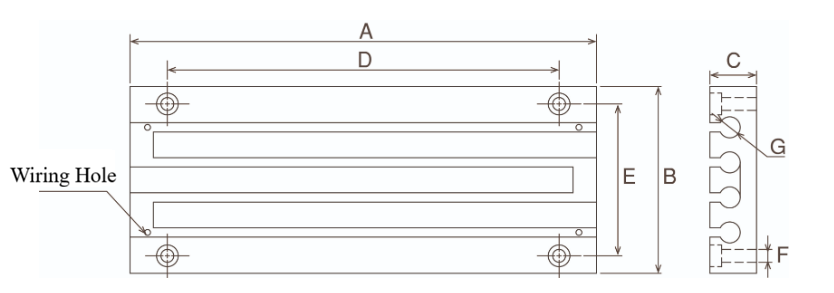

| Product Name | Dimensions (mm) | Wiring holes | Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | Number of grooves | |||
| 350W | 110 | 80 | 15 | ― | ― | ― | 6 | 6 | None | CHK350 |
| 500W | 200 | 80 | 20 | 165 | 65 | 5.5 | 9 | 4 | Yes | CHK500 |
| 750W | 200 | 100 | 20 | 165 | 80 | 5.5 | 7 | 6 | Yes | CHK750 |
| 1KW | 230 | 120 | 27 | 180 | 100 | 6.5 | 9 | 6 | Yes | CHK1000 |
| 1.5KW | 200 | 145 | 27 | 155 | 125 | 6.5 | 11 | 6 | Yes | CHK1500 |
| 2KW | 275 | 185 | 30 | 225 | 160 | 6.5 | 13 | 8 | Yes | CHK2000 |
| 2KW (6 small) | 290 | 150 | 28 | 190 | 125 | 6.5 | 11 | 6 | Yes | CHK2000S |
| 2KW (Square) | 200 | 205 | 30 | 150 | 175 | 6.5 | 13 | 8 | Yes | CHKSQ |
| 2.5KW | 300 | 200 | 30 | 255 | 175 | 6.5 | 13 | 8 | Yes | CHK2500 |
| 3KW | 315 | 225 | 32 | 270 | 205 | 6.5 | 11 | 10 | Yes | CHK3000 |
| 4KW | 375 | 275 | 35 | 275 | 245 | 6.5 | 13 | 10 | Yes | CHK4000 |
| 9 Grooves | 305 | 200 | 31 | 250 | 175 | 6.5 | 12 | 9 | Yes | CHK9DR |
| 12 Grooves | 305 | 295 | 42 | 255 | 265 | 6.5 | 12 | 12 | Yes | CHK12DR |
| 6 large | 315 | 250 | 42 | 255 | 220 | 6.5 | 15 | 6 | Yes | CHK6DRL |
| 8 large | 315 | 325 | 42 | 230 | 295 | 6.5 | 17 | 8 | None | CHK8DRL |
| 8 extra-large | 465 | 320 | 52 | ― | ― | ― | 25 | 8 | None | CHK8DRLL |
| 9 large | 380 | 290 | 52 | ― | ― | ― | 16 | 9 | None | CHK9DRL |
| 9 extra-large | 470 | 425 | 52 | 390 | 385 | 6.5 | 27 | 9 | None | CHK9DRLL |
| 10 large | 310 | 380 | 42 | 250 | 340 | 6.5 | 16 | 10 | Yes | CHK10DRL |
