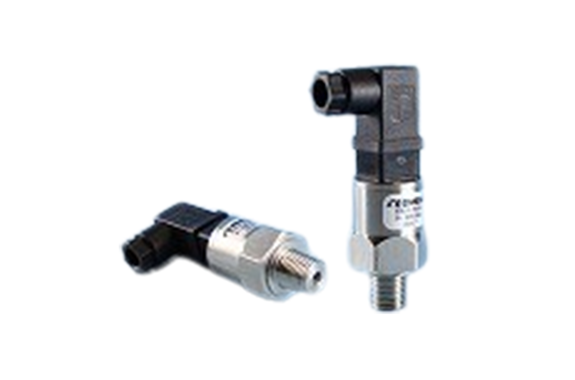

Sakaguchi Compact pressure sensor (transducer)
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Precision | 0.50% BFSL |
|---|---|
| Pressure range | 0.1～34.5MPa |
| Output Voltage/Supply Voltage | 4～20 mA:8～30 Vdc |
| External Connections | DIN 43650C (Mini DIN) |
| Output wiring | Pin 1: Power (+), Pin 2: Power (-) |
| Long-term drift | <0.3% FS @ 25°C |
| Thermal error | 0.05 Mpa ≥ 0.68 Mpa: 0.018% FS/°C |
| 0.68 Mpa > 2.76 Mpa: 0.016% FS/°C | |
| 2.76 Mpa ≥ 6.9 Mpa: 0.019% FS/°C | |
| 6.9 Mpa > 20.7 Mpa: 0.021% FS/°C | |
| 20.7 Mpa ≥ 34.5 Mpa: 0.028% FS/°C | |
| Compensated Temperature | 0～85°C |
| Operating temperature | -40～135°C |
| Process Connections | 1/4 NPT Male |
| Structure | 304SS |
| Wetted part material | 304 SS and ceramic, Al2O3, NBR standard |
| Vibration | 10 g (20~2000 Hz) for less than 0.4 Mpa, 20 g (20~500 Hz) for more than 0.4 Mpa |
| Protection | Overvoltage, short circuit, reverse polarity |
| Response Time | 1ms |
| Ingress Protection | IP65 |
| Weight | 70g |
