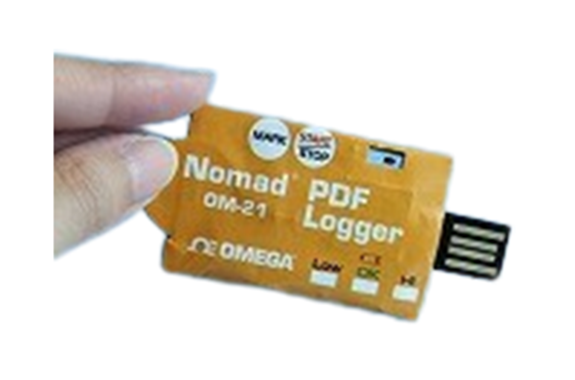

Sakaguchi Disposable Temperature Data Logger for Cold Chain [OM-21]

Manufacturer: Sakaguchi Electric Heaters CO., LTD.

Features

Plug-and-play USB 2.0 interface
No special software/drivers required for programming or downloading
Automatically create PDF reports while connected to your PC
PDF reports include summaries, graphs, and detailed data lists
Low-cost, disposable, accurate temperature sensor included
EN12830 Compliant with FDA 21 CFR Part 11

Specifications

Model number		OM-21P
Temperature	Sensors	Thermistor
	Range	-30～70℃
	Precision	±0.5℃
	Resolution	0.1℃
	Units	℃
	Log Type	Disposable
	Memory	8192 measurements
	Sampling interval	30 seconds, 5 minutes, 10 minutes, 30 minutes, 60 minutes, 90 minutes, 120 minutes
	Data Integrity	Ensures data integrity with file encryption technology
	Password	It can be turned on or off. (Default is OFF). Password must be alphanumeric with a maximum of 16 characters
	Compatibility	Windows XP/Vista/7/8
	Start delay	0 points, 5 points, 30 points, 45 points, 60 points, 90 points, 120 points
Alarm	Single	The LED alarm is activated as soon as the measured value exceeds the alarm threshold.
	Accumulation	The LED alarm will not be activated if the measured value exceeds the alarm threshold, but only if the overall average value exceeds the alarm threshold during the alarm delay period.
	Invalid	The LED alarm does not work during the logging process.
	Alarm range	-20~-10°C, -10~0°C, 2~8°C (lower limit alarm below 2°C, upper limit alarm above 8°C), 0~15°C, 0~25°C, 15~25°C (other ranges are possible)
	Alarm delay	For the single alarm type, the alarm delay is always set to zero. For cumulative alarm types, the alarm delay time is adjustable and can be selected by the user from 5 minutes, 30 minutes, 45 minutes, 60 minutes, 90 minutes and 120 minutes.
	Language	English (default), German, French, Italian, Spanish
	Operation	2 keys: start/stop key and mark key (can bookmark up to 8 during the data log period)
	LED Indicator	REC, Dead Battery, Upper Limit Alarm, Lower Limit Alarm
	Operating temperature	-30～70˚C
	Operating humidity	-40～85˚C
	Storage temperature	Relative humidity less than 90%
	Power supply	3V lithium battery (CR2032). Installed at the Shipment
	Life period	12 months
	Protection level	IP65 (when stored in the included plastic bag)
	Weight	10 g
Dimensions	Size without pouch	L73 x W33 x D2.5 mm
Dimensions	Size in pouch (data logger in the included plastic bag)	L105 x W55 x D2.5 mm
