Sakaguchi Electric Heaters CO.

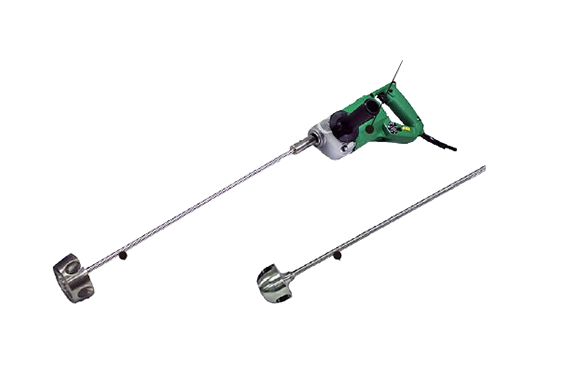

Sakaguchi Electric motor integrated handheld type Bladeless stirring body (C-Mix)
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Coupling Connection | C-Mix Shaft Diameter (φ) | Using Power | Voltage (V) | Power Consumption (W) | No-load speed (rpm) | Mixer (body) weight (kg) | |
|---|---|---|---|---|---|---|---|
| Diameter (φ) | Material | ||||||
| 10 | SUS304 | 10 | Single-phase AC50/60Hz shared | 100 | 700 | 300～1200 | 2.6 |
| Head | Shaft | Reference Stirring Force (Water) | Type name | |||||
|---|---|---|---|---|---|---|---|---|
| Caliber (φ) | Type | Material | Diameter (φ) | Length (mm) | Material | Stirring capacity (l) | Speed (rpm) | |
| 64 | Hemisphere | SUS316 | 10 | 550 | SUS316 | ～40 | 500～1000 | DEH001A |
| 65 | Wide | SUS316 | 10 | 550 | SUS316 | ～40 | 500～1000 | DEH002A |
| 80 | Wide | SUS316 | 10 | 550 | SUS316 | ～100 | 500～1000 | DEH003A |
