Sakaguchi Flexible bending and torsion resistant UL compensated conductor
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
- Depending on the operating temperature and operating environment, you can choose the coating (glass, fluoropolymer, vinyl).
Specifications
| Product Code | KXFUL020 | |
|---|---|---|
| Heart line | Types of thermocouples | K |
| Nominal Cross-Sectional Area (SQ) | 0.2 | |
| Core Line Configuration (b/mm) | 30/0.1 | |
| Core Line Outer Diameter (mm) | 0.63 | |

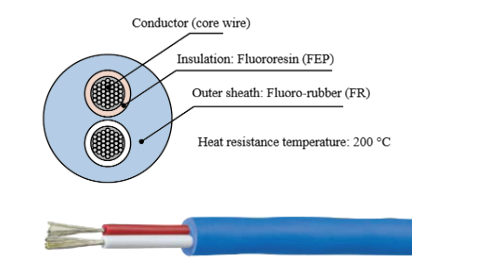

| Insulation | Insulation Coating Thickness (mm) | 0.3 |
| Insulator Outer Diameter (Approx. mm) | 1.23 | |
| Outer coat | Outer coating thickness (mm) | 0.8 |
| Finish Outer Diameter (Approx. mm) | 4.1 | |
| Electrical Properties | Withstand Voltage (V/min) | AC1500 |
| Insulation resistance (MΩ・km) | 1500 or more | |
| Estimated mass (kg/km) | 29 | |
| Volume 1 | 153m | |
| Heat-resistant temperature | 200℃ | |
| Specifications | UL | |
| Remarks | RoHS2 compliant products | |
