Sakaguchi HI-SD ROD Cartridge Heater

Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: HI-SD ROD

Features

  • It has low insulation degradation and retains high insulation.

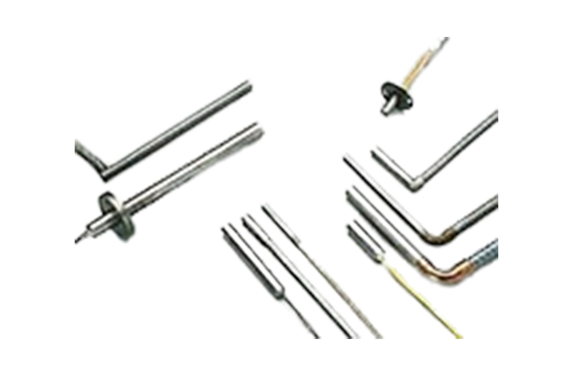

  • We can process a wide variety of lead variations upon request.

Specifications

Outer Diameter5mmφ　　6mmφ　　8mmφ　　10mmφ　　12mmφ　　14mmφ　　16mmφ
Effective diameter (maximum diameter)Outer Diameter -0.05mm
Outer Diameter -0.15mm
Sheath length tolerance±2% (min. ± 2.4mm)
Capacity Tolerance15% up to 100W ± 10% up to 1000W ± (cold resistance value conversion)
leadwireheat-resistant temperature200℃
Outer DiameterModel numberSheath Length (L)Voltage (V)Capacity (W)Watt density (W/cm2)
5φ05041004
05051006
05052006
05071008
☆05072008		40
50
50
70
70		110
110
220
110
220		40
60
60
80
80		8.7
9.8
9.8
9.3
9.3
☆05101020
☆05102024
※05121020
☆05122024
☆05141025
☆05142025		100
100
120
120
140
140		110
220
110
220
110
220		200
240
200
240
250
250		15
18
12
15
13
13
6φ　06031005
06041006
06041012
06061007		30
45
45
60		110
110
110
110		50
60
120
75		14
9.4
19
8.8
　06071010
☆06072010
☆06091018
☆06091024
06092024		75
75
90
90
90		110
220
110
110
220		100
100
180
240
240		8.8
8.8
13
17
17
　06101020
06102024
06121020
06122030		100
100
120
120		110
220
110
220		200
240
200
300		13
15
10
15
8φ　08051005
08061010
08061020
08071015		50
60
60
75		110
110
110
110		50
100
200
150		5.1
8.8
18
10
08101020
08102020
☆08101030
08102030		100
100
100
100		110
220
110
220		200
200
300
300		9.3
9.3
14
14
08121030
08122030
☆08151035
08152035		120
120
150
150		110
220
110
220		300
300
350
350		12
12
10
10
Outer DiameterModel numberLength (L)Voltage (V)Capacity (W)Watt density (W/cm2)
10φ　10041012
10061012
10081018
10081024
10082018		40
60
80
80
80		110
110
110
110
220		120
120
180
240
180		13
8.5
8.8
12
8.8
☆10101012
10101024
☆10102015
10102025		100
100
100
100		110
110
220
220		120
240
150
250		4.5
9.0
5.6
9.3
☆10121025
☆10122025
10151030
☆10152025
10152036		120
120
150
150
150		110
220
110
220
220		250
250
300
250
360		7.6
7.6
7.0
5.9
8.5
　10201030
10202030
10202040
10251040
※10252040
10252050		200
200
200
250
250
250		110
220
220
110
220
220		300
300
400
400
400
500		5.2
5.2
6.9
5.4
5.4
6.8
12φ☆12041012
12061015
☆12081012
12081024
12082024		40
60
80
80
80		110
110
110
110
220		120
150
120
240
240		11
8.8
4.9
9.8
9.8
　12101020
☆12101036
※12102015
12102025		100
100
100
100		110
110
220
220		200
360
150
250		6.2
11
4.7
7.8
☆12121025
☆12122030		120
120		110
220		250
300		6.3
7.6
　12151030
12152025
12152036		150
150
150		110
220
220		300
250
360		5.9
4.9
7.1
　12201025
12202030
12202040
12202050		200
200
200
200		110
220
220
220		250
300
400
500		3.6
4.3
5.7
7.2
※12251040
☆12252025
12252050		250
250
250		110
220
220		400
250
500		4.5
2.8
5.7
　12301040
12302040
☆12302060		300
300
300		110
220
220		400
400
600		3.7
3.7
5.6
Outer DiameterModel numberLength (L)Voltage (V)Capacity (W)Watt density (W/cm2)
14φ　14041015
14042020
14061015
14062020
☆14081020
☆14082025		40
40
60
60
80
80		110
220
110
220
110
220		150
200
150
200
200
250		12
16
7.6
10
7.0
8.7
☆14101025
☆14102025
☆14121025
☆14122030		100
100
120
120		110
220
110
220		250
250
250
300		6.7
6.7
5.4
6.5
※14151030
☆14152030
☆14201040
☆14202040		150
150
200
200		110
220
110
220		300
300
400
400		5.0
5.0
4.9
4.9
☆14251050
☆14252050
☆14301050
☆14302070		250
250
300
300		110
220
110
220		500
500
500
700		4.8
4.8
4.0
5.6
16φ※16081020
☆16082020
16101030
16102030
※16151040
16152050		80
80
100
100
150
150		110
220
110
220
110
220		200
200
300
300
400
500		6.1
6.1
7.0
7.0
5.9
7.4
☆16201050
16202070
16202100
☆16252050
☆16252080
☆16282085
☆16302060
☆16302100		200
200
200
250
250
280
300
300		110
220
220
220
220
220
220
220		500
700
1kw
500
800
850
600
1kw		5.4
7.5
10.8
4.2
6.8
7.2
4.2
7.0
