Sakaguchi Electric Heaters CO.

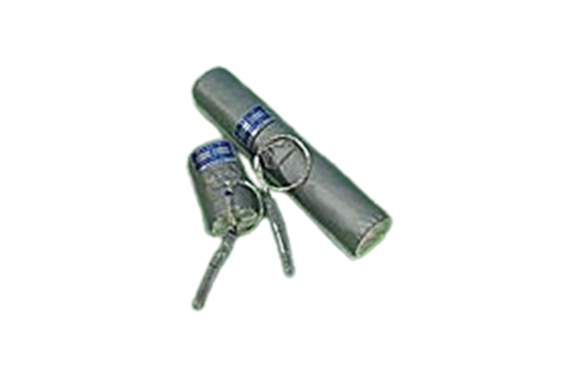

Sakaguchi Jacket Mantle Heater
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Insulation layer | Fiberglass |
|---|---|
| Heating Wire | Glass-coated nichrome wire |
| Voltage | AC100V (200V can also be manufactured by custom) |
| Ribbon Width (D) | 20φ～100φ |
| Length (L) | 100mm～1000mm |
| Connectors | single-leadflatwith plug |
| Maximum operating temperature | 400°C (However, fasteners and Velcro should be heat-resistant to 150°C, and plug-in plugs should be used at a peripheral temperature of 50°C or less) |
| Model number | Inner Diameter (φD) | Length (L) (mm) | Capacity (W) | Effective Watt Density (w/cm2)) | Product Code |
|---|---|---|---|---|---|
| P2－1 | 20 | 100 | 100 | 1.6 | P21 |
| P2－3 | 300 | 150 | 0.8 | P23 | |
| P3－1 | 30 | 100 | 100 | 1.1 | P31 |
| P3－3 | 300 | 200 | 0.7 | P33 | |
| P2－2 | 20 | 200 | 100 | 0.8 | *MANTX (made-to-order) |
| P2－5 | 500 | 200 | 0.6 | ||
| P2－10 | 1000 | 300 | 0.5 | ||
| P3－2 | 30 | 200 | 150 | 0.8 | |
| P3－5 | 500 | 300 | 0.6 | ||
| P3－10 | 1000 | 400 | 0.4 | ||
| P5－1 | 50 | 100 | 150 | 1.0 | |
| P5－2 | 200 | 200 | 0.6 | ||
| P5－3 | 300 | 300 | 0.6 | ||
| P5－5 | 500 | 400 | 0.5 | ||
| P5－10 | 1000 | 500 | 0.3 | ||
| P10－1 | 100 | 100 | 300 | 1.0 | |
| P10－2 | 200 | 400 | 0.6 | ||
| P10－3 | 300 | 400 | 0.4 | ||
| P10－5 | 500 | 500 | 0.3 | ||
| P10－10 | 1000 | 800 | 0.3 |
