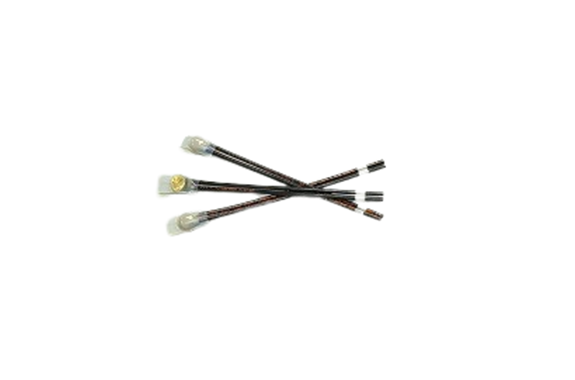

Sakaguchi S06-HT Series Thermic thermostat

Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: S06-HT Series

Features

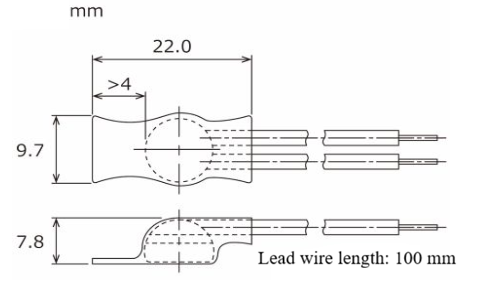

  • Compact design- The thermal part is compact in design, so it can use even in small spaces.
  • Pressure Resistant Design- It is also resistant to pressure, so it can install inside and outside the motor and transformer coils.
  • Vibration-resistant design- Even if there is rotational vibration such as a motor (10~60Hz), it will work reliably.

Specifications

Switch mechanismSingle-pole, single-throw, contact type
Switch OperationN & C (OFF at set temperature)
Set temperature tolerance±10℃
Operating Voltage RangeAC 100V～AC 500V
Rated voltage250V（VDE）
Contact capacity250V/6.3A
Contact contact resistanceLess than 50mΩ
Contact Operating TimeLess than 1ms
Withstand voltageAC2000V 1 second
Lead WirePTFE Wire 0.75sq×100L AWG18
Vibration resistant10～60Hz　100m/S²
Pressure resistant600N（60Kg）
Switching Cycle1,000 Cycles (AC)
Overseas Certification StandardsVDE (Germany)
IEC
