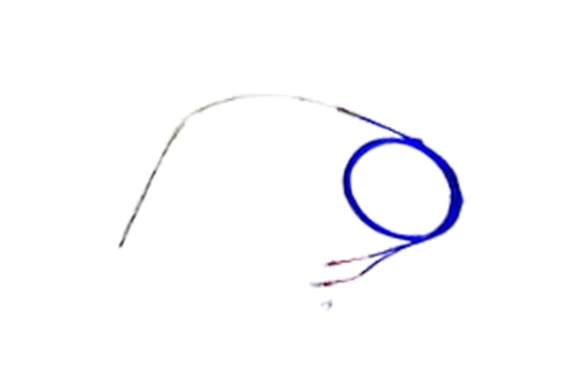

Sakaguchi T-35 Double Sheath Thermocouple (K Type)
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications

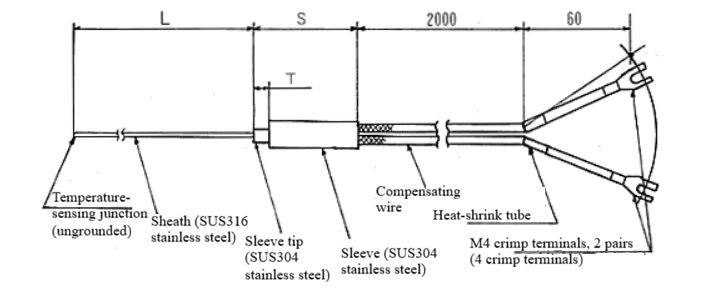

| Product Name | T-35 Double Sheath Thermocouple 500 | T-35 Double Sheath Thermocouple 1000 |
|---|---|---|
| Sleeve Dimensions Diameter × Length (S) | 8×45 | 8×45 |
| Sleeve tip dimension diameter × length (T) | 2.5×6 | 2.5×6 |
| Sheath Diameter (φ) | 1.6 | 1.6 |
| Sheath Length (L) | 500 | 1000 |
| Product Code | T35165DH | T351610DH |
| Types of thermocouples | K | |
| Temperature Measurement Contacts | Non-grounded | |
| Sheath material | SUS316 | |
| Tolerance | 2 (equivalent to 0.75 grade) (in accordance with JIS C 1605-1995) | |
| Compensation Conductor | Heat-resistant glass cladding (blue) 0.5sq | |
| Starting power | Compliant with JIS C 1605-1995 | |
| Common temperature (°C) | 500 | |
