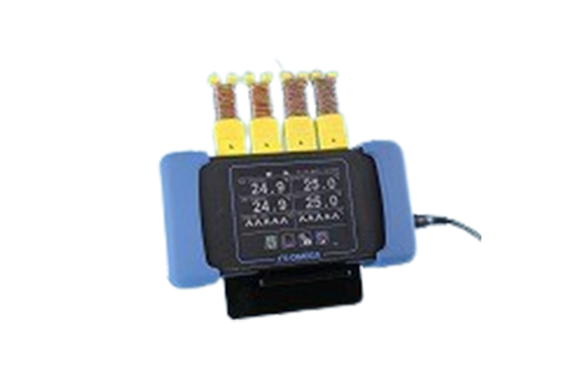

Sakaguchi Thermocouple x4/RTD x2, temperature data logger
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Model number | RDXL6SD | |
|---|---|---|
| Input | 4-Channel Input (Either) Miniature Thermocouple Connector, 3-Position Pt100 (3.5 mm Connector) | |
| Input Temperature Range | J thermocouple | -200〜1200°C |
| K thermocouple | -200〜1372°C | |
| T-thermocouple | -200〜400°C | |
| R thermocouple | 0〜1768°C | |
| S thermocouple | 0〜1768°C | |
| N thermocouple | 0〜1300°C | |
| E thermocouple | -200〜1000°C | |
| RTD | -200 to 850°C (RTD connector model RDXL4SD-CONN must be purchased) | |
| Accuracy (temperature) | Thermocouples: | ±0.1% or 0.8°C |
| Resistance temperature measurement | ± 1.0% or 1.0°C | |
| Resolution (temperature) | 0.1° below 1000°C, 1° above 1000°C | |
| Display | TFT LCD (touch panel, backlit) 72 mm, 320 x 240 pixels | |
| Configurable parameters | Temperature Units, Alarms, Signal Processing, Date and Time, Data Logging, Power Options, Graph Channels | |
| Alarm Settings | 12 alarms (2 channels) individually configurable with HI/LO | |
| Signal Processing | Average, minimum, maximum, standard deviation, temperature difference between 2 channels | |
| Response Time | 1 second | |
| Operating Ambient Temperature | 0〜50°C | |
| Power supply | 5 VDC Adapter (Included) | |
| Current draw | 250mA in full display mode, 120mA in energy-saving mode | |
| Weight | 180 g (without batteries) | |
| Dimensions | 136 W x 71 H x 32 D mm | |
| Pt100 Connector (RTD) | 3-pole, 3.5 mm connector | |
