Sakaguchi Electric Heaters CO.

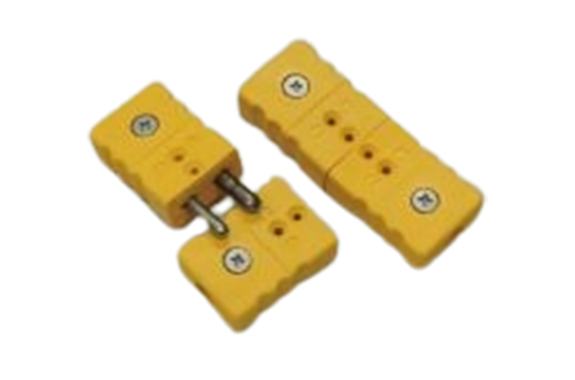

Sakaguchi Watlow Thermocouple Standard Connectors
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: Standard
Features
Specifications

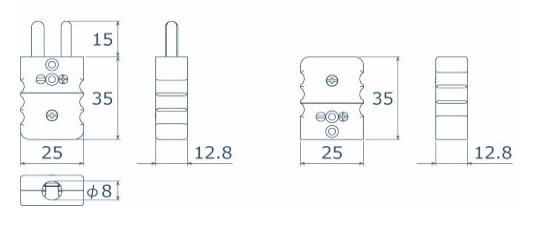

| Thermocouple type | Heat-resistant temperature (°C) | ASTM E230/ANSI Color Codes | Pin Dimension (mm) | Product Code | Product Code (WATLOW Model) | ||
|---|---|---|---|---|---|---|---|
| Plug | Jack | Plug | Jack | ||||
| K(CA) | 215 | ■Yellow | Interval: 11.1 +:φ3.97 -:φ4.76 | SCM-K-WAT | SCF-K-WAT | SCM-K-NAT | SCF-K-NAT |
| J(IC) | 215 | ■Black | SCM-J-WAT | SCF-J-WAT | SCM-J-NAT | SCF-J-NAT | |
| T(CC) | 215 | ■ Cyan | SCM-T-WAT | SCF-T-WAT | SCM-T-NAT | SCF-T-NAT | |
| R(Pt-13% Rh/Pt) | 215 | ■Green | SCM-S-WAT | SCF-S-WAT | SCM-S-NAT | SCF-S-NAT | |
