SAN-E TEC Co.

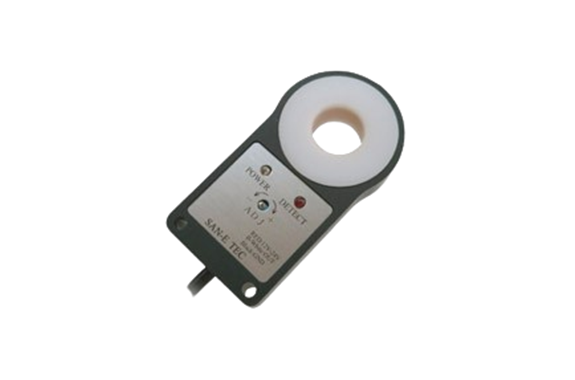

SAN-E TEC CS□□0A Pass Type Counting Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: CS□□0A
Features
- Compact size with built-in amplifier
- Both NPN and PNP types are available
Specifications
| Item | Specifications | ||||
|---|---|---|---|---|---|
| Model name | CS300A | CS250A | CS200A | CS150A | CS100A |
| Power supply voltage | ＤＣ＋12Ｖ to ＋24Ｖ（ripple: 5% or less） | ||||
| Consumption current | 30ｍＡ or less | ||||
| Non-contact output | MAX DC 30V drain current, Max 100mA | ||||
| Operation | CSxx0A-x : Open drain output, CSxx0A-xP : Open collector output | ||||
| Detectable material | Metals such as iron, stainless steel and brass | ||||
| Detection hole diameter | φ30mm | φ25mm | φ20mm | φ15mm | φ10mm |
| Minimum detected body (steel ball) size | 6mm | 5mm | 4mm | 3mm | 2mm |
| OFF delay | 0 sec : CSxx0A-0, 0.1 sec : CSxx0A-1, 0.2 sec : CSxx0A-2 | ||||
| Operating temperature and humidity | －10℃～＋60℃ R.H.15％～90％（no condensation） | ||||

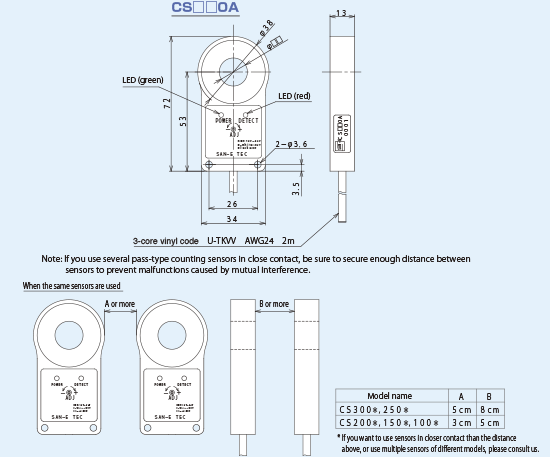

Dimensional
