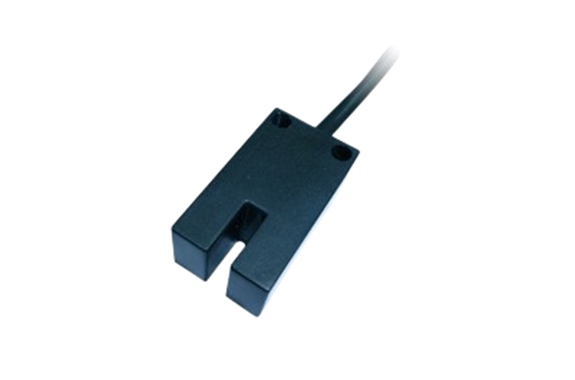

SAN-E TEC CS302 Metal Material Detection Sensors/Metal Detection Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: CS302
Specifications
| Model | CS302 |
|---|---|
| Power supply voltage | DC + 4.5V to + 16.5V Ripple (pp) 50mV or less |
| Current consumption | 10ｍＡ or less |
| Output current | Max. 40mA sink |
| Output residual voltage | 1.0V or lower (at the load current of 40mA) |
| Output impedance | 4．7ｋΩ |
| Operation | When an object is detected. -> Output “H” |
| Responsiveness | 500Ｈｚ |
| Insulation resistance | 100MΩ or more (at 500V): Measured with the case ground removed. |
| Detected body | Metal (not responding to nonmetal) |
| Protective structure | ＩＰ 64 |

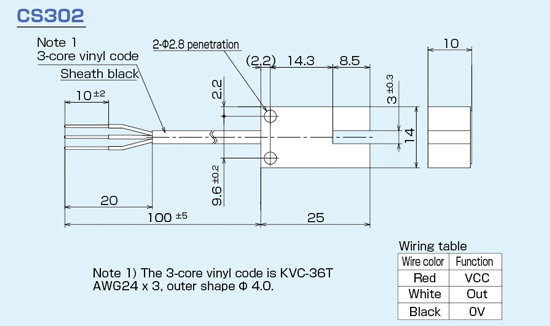

Dimensional
