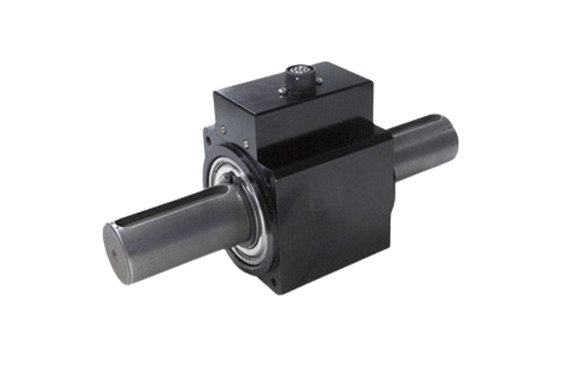

SAN-E TEC MTS Series Magnetostrictive Rotating Torque Sensors

Manufacturer: SAN-E TEC Co., Ltd.
Model: MTS Series

Features

Model		MTS series
Accuracy		±0.3% F.S. (CW/CCW continuous operation)
Power supply voltage		* DC±12V±0.5V
Power consumption		±200mA
Output voltage		* -2V to +2V
Responsiveness		* to 3kHz
Operating temperature range		-10 to +60 degree C
Storage temperature range		-20 to +85 degree C
Humidity range		15% R.H. to 85% R.H. (No condensation)
Zero-point temperature coefficient		±0.4% F.S./10 degree C
IP code	(DINEN60529)	* IP60
Length of cable		* 2m

For specifications indicated by *, please feel free to contact us. IP65 compliant model are also available.

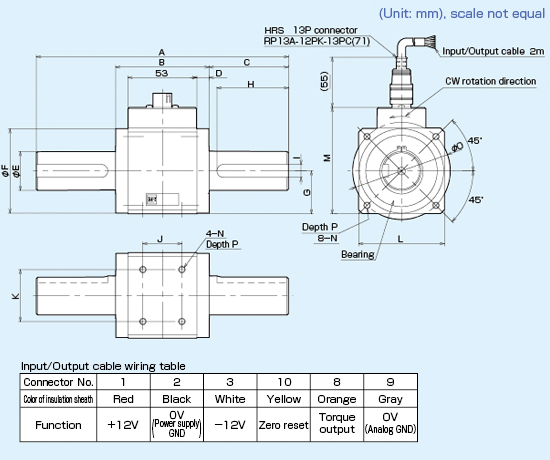

P/N	Rated torque [Nm]	Shaft diameter [mm]	Torsional rigidity [Nm/rad]	Maximum rotations [r.p.m]	Moment of inertia [gcm²]	Allowable overload [%]	Critical overload [%]	Weight [g]
MTS001	1	6	140	8,000	0.8	200	400	250
MTS002	2	8	520	8,000	2.51	200	400	310
MTS005	5	8	520	8,000	2.51	200	400	310
MTS010	10	10	1,100	8,000	7.1	200	400	360
MTS030	30	12	2,230	8,000	20	200	400	600
MTS050	50	17	9,000	8,000	88	200	400	680
MTS100	100	20	16,100	8,000	190	200	400	1,200
MTS200	200	22	23,600	6,000	280	200	400	1,300
MTS500	500	30	78,600	6,000	1,210	200	400	1,900
MTS1000	1,000	35	142,000	5,000	2,380	200	400	3,300
MTS2000	2,000	45	371,000	4,000	7,400	200	400	5,000
MTS3000	3,000	50	552,000	4,000	12,040	200	400	5,500

The torsional rigidity indicates the value when the couplings are fixed at points 5mm from both ends of the case.
