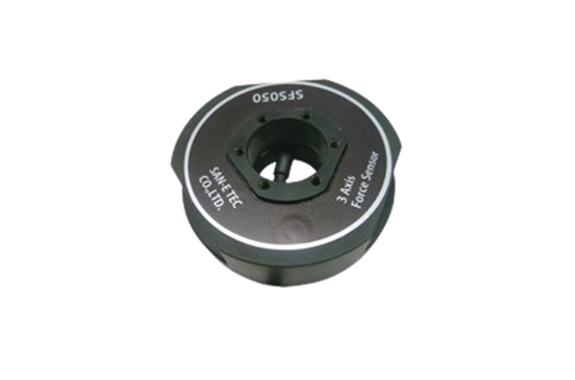

SAN-E TEC SFS050A 3-Axis Force Torque Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: SFS050A
Features
- Hollow structure
- Simultaneously detects force 3-axis (Mx, My, Fz)
- Possible to measure static and dynamic operation
- High responsiveness of 1kHz that captures quick changes
- Built-in amplifier and microcomputer for load measurement
- Support RS-422 interface
- Built-in low-pass filter function
- Possible to detect overload and abnormal temperature
- Guarantee 500% allowable overload
Specifications
| Items | SFS050A | |
|---|---|---|
| Rated load | Fz | 50N |
| Mx,My | 1Nm | |
| Measurement resolution | Fz | ＜0.01N |
| Mx,My | ＜0.0002Nm | |
| Power supply voltage | DC＋5V | |
| Power comsunption | 200mA | |
| Output method | RS-422 | |
| Responsiveness | 1kHz | |
| Non-linearity | ±3%F.S. | |
| Other axis sensitivity | ±5%F.S. | |
| Allowable overload | 500% | |
| Operating temperature | 0 to +50 degree C | |
| Humidity range | 15%R.H. to 85%R.H. w/o condensation | |
| Diameter | 63mm | |
| Hollow diameter | 20mm | |
| Height | 20mm | |
| Weight | 115g | |
