SAN-E TEC Co.

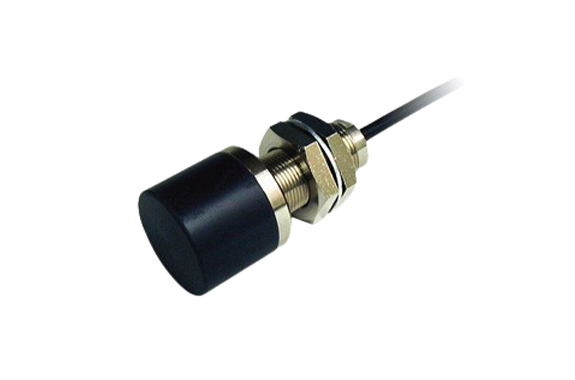

SAN-E TEC SS-203 Space Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: SS-203
Specifications
| Item | Specifications |
|---|---|
| Power supply voltage (ripple (p-p): 5% or less) | DC +12V to +25V |
| Stabilized power supply circuit | Built-in |
| Consumption current | Max. 8mA |
| Measurement range | 0.5㎜ to 5.5㎜ |
| Resolution | 0.2％F.S. |
| Output voltage (iron □40×3mm) | 1.0V to 4.0V |
| Frequency characteristic | DC to 5ｋHz(-3dB) |
| Output form | Open collector |
| Operating temperature range | ー10℃ to +70℃ |
| Protective structure | IP67 |
| Vibration performance | 10Hz to 55Hz double amplitude: 1.5㎜ |
| Impact resistance | 50G |
| Tightening torque | 100 kgf･ｃｍ or less |
* If you need an indicator, please consult us.

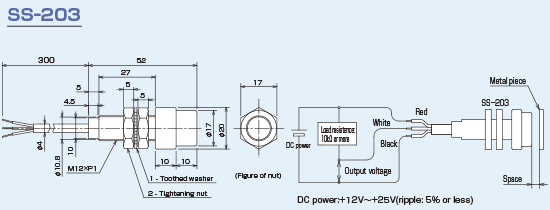

Dimensional
