SAN-E TEC Co.

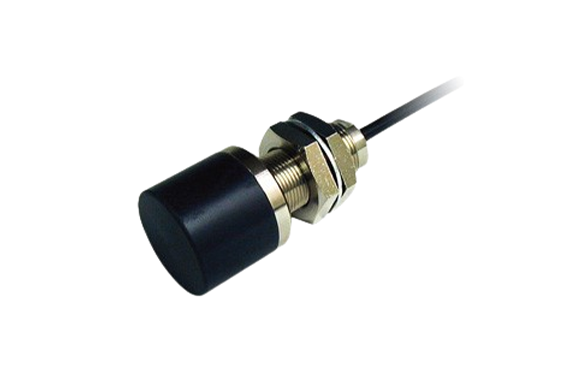

SAN-E TEC SS-390H Space Sensors
Manufacturer: SAN-E TEC Co., Ltd.
Model: SS-390H
Specifications
| Item | Specifications |
|---|---|
| Power supply voltage (ripple (p-p): 5% or less) | DC.+12V to +17V |
| Stabilized power supply circuit | Built-in |
| Consumption current | Max. 10mA |
| Measurement range | 0.0㎜ to 15㎜ |
| Resolution | 0.2％F.S. |
| Output voltage (iron □40×3mm) | 0.5V to 4.7V (iron□80×3㎜) |
| Frequency characteristic | DC. to 5kHz(-3dB) |
| Output form | Open collector |
| Operating temperature range | ー10℃ to +60℃ |
| Protective structure | IP65 |
| Vibration performance | 10H z t o 55Hz double amplitude: 1.5㎜ |
| Impact resistance | 50G |
| Tightening torque | 140 kgf･ｃｍ or less |

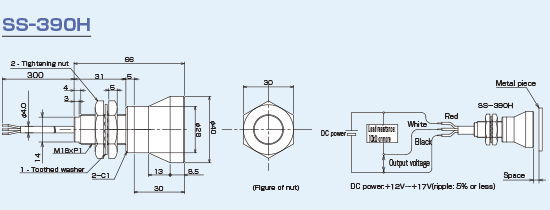

Dimensional
