SAN-E TEC Co.

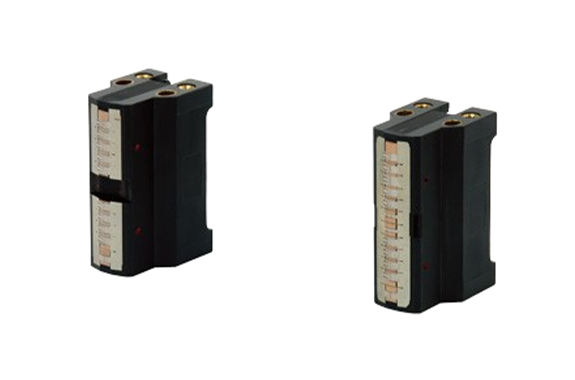

SAN-E TEC Station Service Device Magnetic Heads For Automatic Ticket Gates
Manufacturer: SAN-E TEC Co., Ltd.
Features
- Multiple track structure
- Compliant with CJRC standards
- Good write performance
- Good abrasion resistance
- (3 times higher compared with our conventional products)
- High-speed performance (2.5m/sec)
Specifications
| Item | Specifications | Notes |
|---|---|---|
| Track configuration | 1 track to 12 tracks | ・Cybernetic standards (CJRC standards) ・Support the configurations of automatic ticket gates in Japan and overseas |
| Supported medium | Coercive force: 23.9KA/m ～ 219KA/m (300Oe ～ 2750Oe） | |
| Write performance | Spacing loss：20μm Depth of magnetic layer：20μm Overwrite：－30dBV to －60dBV | |
| Head configuration | Write-dedicated head, read-dedicated head, combination head | Can be arbitrarily set by each track |
| Supported speed | to 2.5m/sec | |
| Abrasion resistance performance | 2 million passes to 20 million passes | Sendust core: Ceramic holding structure largely improves abrasion resistance. |
