- SANKO ELECTRONIC LABORATORY SWT-7000IIIN Electro-magnetic / Eddy Current Coating Thickness Metters
Japan, Measurement, SANKO ELECTRONIC LABORATORY

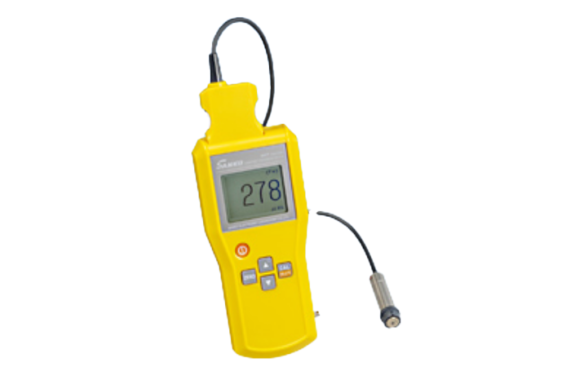

SANKO ELECTRONIC LABORATORY SWT-7000IIIN Electro-magnetic / Eddy Current Coating Thickness Metters
Product Made in Japan
Manufacturer: SANKO ELECTRONIC LABORATORY
Model: SWT-7000IIIN
Features
Probe built-in type with palm size
Wide measuring range of 0~2mm
Immediate measuring possibility with Zero/Standard adjustment
Application
Anodic oxide coating/ general coating/ lining
Specification
Range : 0~2.00mm
Display : Graphic LCD ( data, messages ) , Backup light
Resolution : 1μm : 0~999μm switching to
0.1μm : 0~400μm
0.5μmm : 400~500μm
0.01mm : 1.00~2.00 mm
Accuracy : 0~100μm : ±1μm or ±2% of reading 101μm~2.00mm : ±2% of reading
Probe : One point contact constant pressure type, V cut, φ13 x 48mm
Power : Dry Battery ( LR 6 x 2 ), Auto-Power-OFF
Temperature : 0~40℃(non-Condensing)
Accessories : Standard thickness, Zero plate for testing (NFe), Carrying case
