SATAKE MultiMix

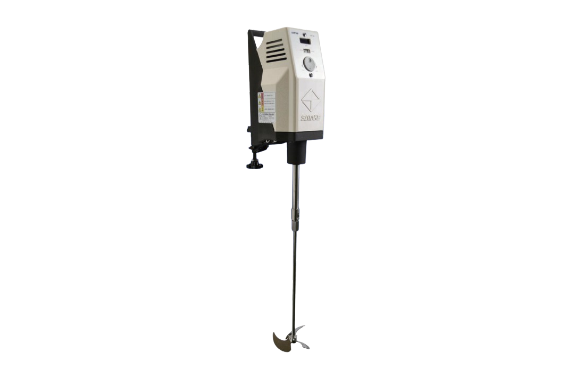

SATAKE EG Mixer NP-60
Manufacturer: SATAKE MultiMix Corporation
Model: NP-60
Features
- A compact, high-performance mixer suitable for tests and production from small to medium capacities (liquid volume: 10–100L).
- It can be started/stopped and the rotation speed can be adjusted easily with the dial on the operation panel.
- The rotation speed (8–400 min⁻¹) and shaft length (400–580 mm) can be adjusted freely.
- No tools are required to attach the impeller to the shaft.
- It comes with a handle, making it easy to move.
Specifications
| Model | NP-60 |
|---|---|
| Dimensions | 142 × 180 × 320 mm (Main body only) |
| Weight | 8 kg (Including shaft and impeller) |
| Power Supply | AC 100V 50/60Hz |
| Mixing Capacity | 10 ~ 100L (Reference) |
| Power | 60W |
| Rotation Speed | 8 ~ 400 min⁻¹, Stepless adjustment, Digital display |
| Clamping Method | Clamp type |
| Shaft Extension | Non-retractable 400 ~ 580 mm |
| Shaft Diameter | φ10 mm |
| Impeller | Sakata HR330 Impeller, SUS304 |
| Impeller Diameter | 120 mm |
| Safety Equipment | Overload protection with motor stop function |
| Power Cord | 2.8 m |
| Dimensions (Stand) | 710 × 345 × 180 mm (Width × Depth × Height) |
| Package Contents | Mixing machine body, Clamp set (Main body included), Extension shaft (Main body included), Power cord (2.8 m), Power plug (with 2-pin AC fuse), Sakata HR330 Impeller, Shaft extension stopper (with 19 mm diameter) |
